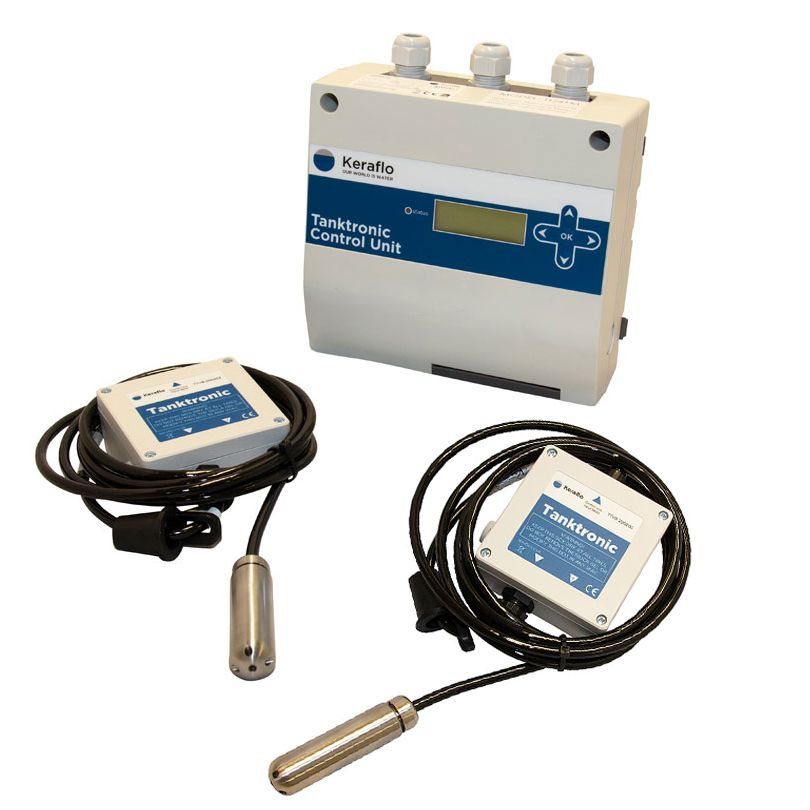

Tanktronic Control Unit c/w Twin Pressure & Temp Sensor 3m cable assembly

Tanktronic Control Unit c/w Twin Pressure & Temp Sensor 3m cable assembly

A modern solution to monitoring and control of water storage tanks. The Tanktronic is an electronic tank management system that monitors and controls both water levels and temperatures and it compatible with your (BMS) building management system. The Tanktronic can control up to 4 x separate tanks. This can be up to 4 x single tanks, 2 x twins or 1 x twin + 1 x single. However by adding the S-Module it will allow additional control valves and third party devices to be added.

Features

• Monitors and controls water levels and temperatures filling and feed all this information back to your building management system.
• Suitable for single and multiple tanks
• input and output connectivity
• Quick start feature with intuitive interface
• Alarms, fail-safe and holiday schedule functionality
• Compatible with building management systems (BMS)
• User friendly
• Quick to install

Holiday Schedule

• Holiday Schedule feature enables users to vary tank capacity to match changing levels of demand at different time periods.
• Each tank can be set with its own operating level to follow up to 10x schedules close level, fill delay, alarm level high and low, temperature high and low.
• A two-stage alert feature for high/low water levels and temperature: A second stage ‘override’ takes evasive action if first stage ‘alert’ is not responded to.
• Switchable mode setting between ‘Normal’, ‘Holiday’ schedules and ‘Auto’ operation.
• Set-up wizard allows standard set-ups to be configured quickly and easily.
• Simple menu navigation with key status information (fault and alarm log data) displayed.
