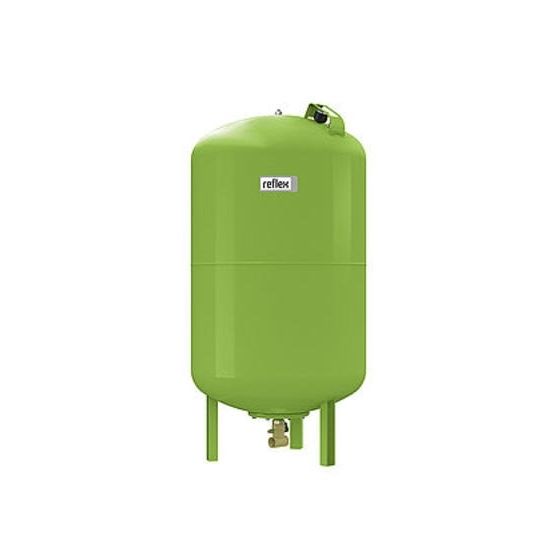

Reflex Refix DT 500 Litre Flow Through Expansion Vessel incl. Flowjet 1 1/4, 10 bar
Refix DT with Flowjet 1 1/4" and integrated internal anti-legionella circulation, vessel for drinking water applications, water heating, water supply and pressure booster systems. Built and tested according to EN 13831 respectively DIN-DVGW. Approval according to 2014/68/EU directive for pressure equipment.
- Replaceable butyl-bladder, build according to EN 12831, KTW-C and DVGW-W 270 standards.
- Outer/inner coating, inner coating according to KTW-A (food quality regulations).
- Vessels stand vertical with steel profile feet
- Pressure gauge integrated in air compartment.
| Type: | DT 500 |
| Nominal volume: | 500 l |
| Useful volume max.: | 375 l |
| perm. operating temp.: | 70 °C |
| perm. op. overpressure: | 10 bar |
| pre charge pressure ex works: | 4 bar |
| Diameter: | 740 mm |
| Height: | 1490 mm |
| Net weight: | 72 kg |
| System connection: | 2*Rp 1 1/4 |
| Nominal flow volume: | 7,2 m³/h |
| Colour: | Green |
| Product Type | Expansion Vessels |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | Reflex |
| Model Range | Flow Through |
| Product Code | PVA500G |
| Orientation | Vertical |
| Positioning | Floor standing |
| System Type | Potable (Drinking) |
| Vessel Pre-Charge Pressure | 4 bar - Nitrogen |
| Max Pressure | 10 bar |
| Max Temperature | 70°C |
