Reflex 12 Litre Heating Expansion Vessel

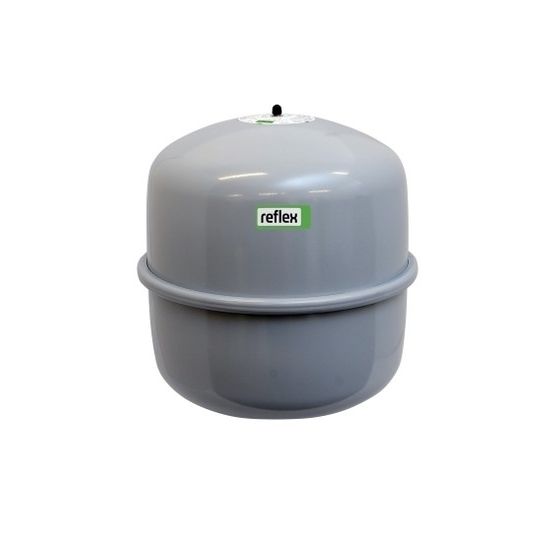

Reflex 12 Litre Vertical Heating Expansion Vessel

Altecnic offers a complete range of expansion vessels to meet the requirements of most heating or cooling systems. Our expansion vessels are manufactured to meet the requirements of the PED 97/23/EC Directive and BS EN 13831:2007 and are designed to provide years of reliable service.

Design

Altecnic expansion vessels are constructed with a high-quality, non-replaceable diaphragm that is resistant to ethylene or propylene glycol mixtures. The vessels are also epoxy coated in red for corrosion protection.

How It Works

When water is heated, it expands. In a closed heating system, this expansion cannot be absorbed by the pipes or other components, so it can put a lot of stress on the system. Altecnic expansion vessels absorb this expansion, preventing damage to the system and helping to extend its lifespan.

Benefits

Altecnic expansion vessels help to maintain constant pressure within the heating system, which can help to reduce energy consumption.
The vessels are also designed to prevent water hammer, which can damage the system and create noise.
Altecnic expansion vessels are backed by a 5-year warranty.

• Reflex HV12C
• Volume: 12 litres
• Dimensions: 315mm diameter x 315mm height
• Connection: 3/4"
• Pre Charge Pressure: 1.5 bar nitrogen
• Maximum Working Pressure: 3 bar
• Max. vessel operating temperature: 70˚ C
• Max. flow operating temperature: 120˚C
• Weight: 2.3 kg

To learn more about Altecnic expansion vessels, please visit our website or contact us today.
