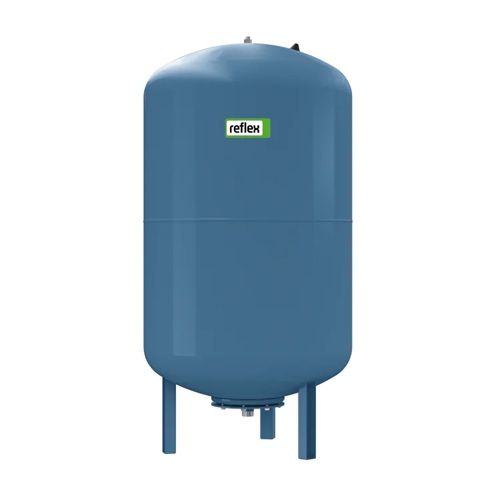

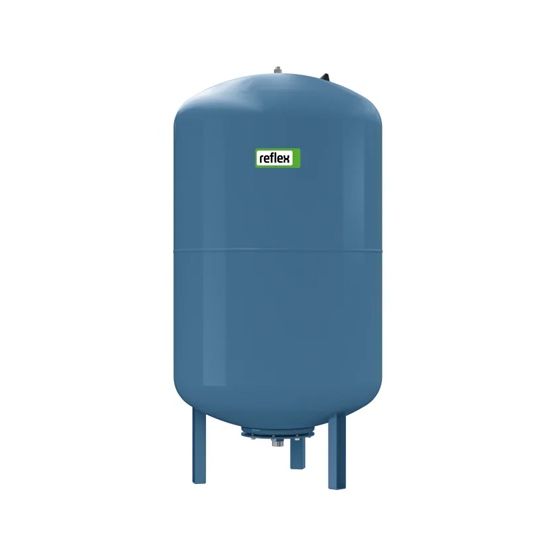

Reflex 1000 Litre Potable Expansion Vessel - Vertical

Reflex 1000 Litre Vertical Potable Expansion Vessel

This range of Altecnic Reflex vertical expansion vessel are designed for potable water systems. They comply with PED 97/23/EC Directive and BS EN 13831:2007 for closed expansion vessels with built-in bladders. Nitrogen pre-charging extends the vessel's lifespan by minimising internal corrosion and maintaining pressure. Constructed with a two- or three-part welded carbon steel shell, the vessels feature a pre-pressurised air chamber and a synthetic rubber bladder.

Specification

• Carbon steel connections
• The internal surfaces of the vessel in contact with the water are coated against corrosion
• Suitable for temperatures up to 70°C, resistant to ethylene or propylene glycol mixtures and has low gas permeability
• Replaceable bladder sizes: 50 litres and larger except 140 litres size
• Reflex PV1000W
• Volume: 1000 litres
• Dimensions: 740mm diameter x 2804mm height
• Connection: 11/2" BSP
• Max working pressure: 10 bar
• Pre charge pressure: 4.0 bar
• Epoxy powder coated, blue colour
