Polytank Poly A30 (XPA30) - Type AB Air Gap

Polytank Poly A30 - incorporating type AB Air Gap

The Polytank PolyA30 Air Gap Chamber fits onto any size of Rectangular, Coffin and Framed Polytank except for 18x12x12 and 24x12x24 - Polytank needs to be ordered seperately. Polytank A30 is designed to accommodate a maximum flow rate of 62 litres/minute (i.e. BS1212 part 2 float operated valve with a No. 9 - 9.5mm (3/8" bore seat) A maximum float size of 178mm (7") can be accommodated.

To ensure a long and trouble-free life, all plastic products should be handled carefully at all times. Polytanks have been specially designed for strength and appearance, and they are extremely durable; however, they can be damaged.

Always test thoroughly to avoid embarrassment. It is unavoidable that a tank will be damaged during the multi-handling of the Polytank from manufacturer to merchant to plumber to site to cupboard or loft.

Install insulation as part of your PT2 package to ensure that your Polytank delivers good quality drinking water to your taps and meets all British Standards.

Check that the warning pipe can accept the incoming supply. If necessary, add a restrictor to the inlet.

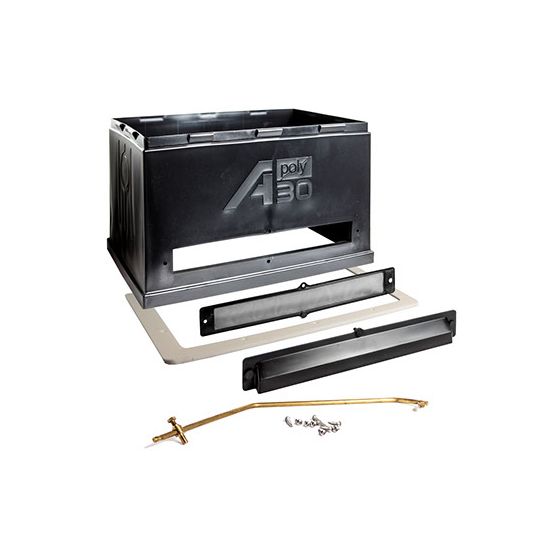

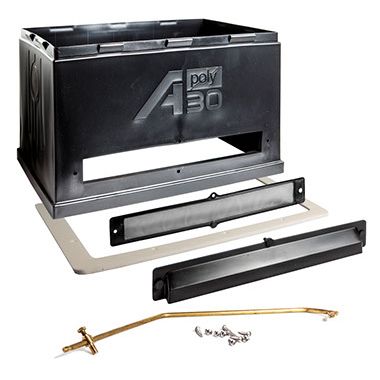

• POLYTANK PolyA30 chamber with weir
• PolyA30 seal
• 10 SS screws
• J4 insulation
• Extended arm
• Fixing instructions

Specifications

• Length: 15 inch 375mm approx
• Width: 10 inch 245mm approx
• Height: 9 inch 230mm approx
