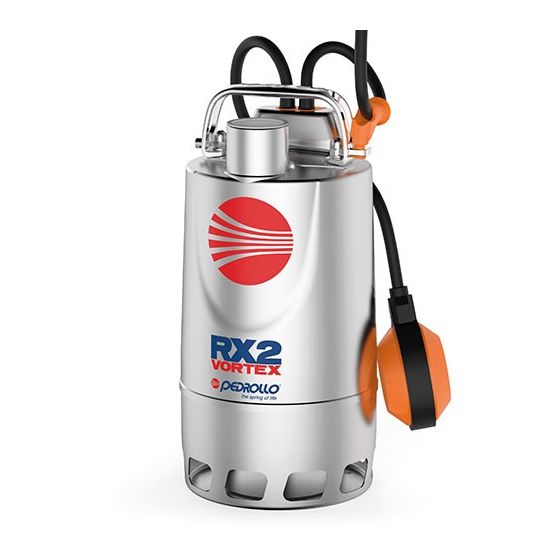

Pedrollo RX5/40 VORTEX Submersible Drainage Pump (3 Phase)

Pedrollo RX5/40 VORTEX 3ph Submersible Drainage Pump

The RX VORTEX series pumps are suitable for use with dirty water. The design solutions that have been adopted, such as the complete cooling of the motor, guarantee the reliability of the pump. They are suitable for use in domestic applications such as for discharging dirty water containing suspended solids.

1.1 kW          20 - 380 Litres/min           12.5 - 2 Head (m)

Product Range Overview

• Power cable: 5 metres as standard (10m available for an additional cost, please contact our Sales Team for more information). 10 metres as standard equipment for RX 4-5/40.
• Two mechanical seals separated by an oil chamber for RX 4-5/40
• External float switch: standard issue on Single-Phase versions. Manual versions without float switch are available for Single-Phase and are standard for Three-Phase (contact us for more information)
• Impeller: VORTEX AISI 304 stainless steel
• 10m maximum immersion depth (with a sufficiently long power cable)
• Max. passage of suspended solids:
  • RX 2/20, RX 3/20 up to Ø 20mm
  • RX 4/40, RX 5/40 up to Ø 40mm
• Suction level: 25mm above ground level for RX 2/20, RX 3/20. 50mm above ground level for RX 4/40, RX 5/40
• Continuous service S1


Attention: Standard EN 60335-2-41 requires the use of a 10 metre cable in outdoor applications

For performance curves and additional information; see linked data sheet(s).
