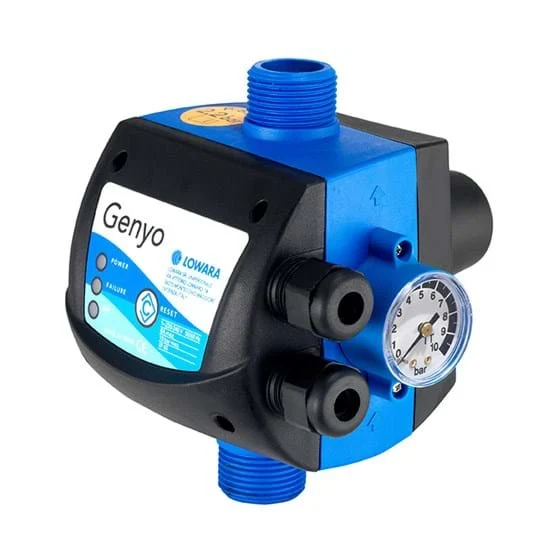

Lowara Genyo 8A F12
Genyo is a new line of compact electronic devices that include pressure/flow switches for controlling and protecting electric pumps. Genyo is an electronic circuit-controlled diaphragm and counteracting spring system integrated with flow and pressure sensors. Genyo allows for automatic control of pump start-up and shutdown based on actual water demand, avoiding pressure fluctuations at delivery points with constant operating point. Genyo combines several system controls into a single device. There are two models available: 8A with three fixed starting pressures (GENYO 8A) and 16A with automatic restart (GENYO 16A).
Application
The Genyo Drives can be used in a variety of applications, including domestic pressure boosting (single and multi-family dwellings), small irrigation and gardening, and civil water systems ( campgrounds, sporting facilities etc.)
Some benefits to the Genyo drive include:
- Protection against dry running
- Little to no maintenance required
- Quick and easy installation
- Compact size
- Constant operating point with constant pressure that is stable and unchanging
- Back-up tank to compensate for minor hydraulic leaks or drips (patented system)
- Limited flow resistance
Specification
- Power supply: Single phase 220-240V
- Frequency: 50/60 Hz
- Max current: 8A inductive
- Protection class: IP65
- Start pressure: Fixed start P: 1.2 bar
- Operating Temperature: 0-60°C
- Max Pressure: 10 bar
- Inlet/Outlet Connections: R1"
| Delivery Estimate | 5 - 7 working days |
|---|---|
| Product Type | Booster Set Accessories |
| Custom Shipping | 0.000000 |
| Manufacturer | Lowara |
| Model Range | Genyo Drive |
| Warranty | 1 Year Warranty |
| Power Supply | 220V-240V Single Phase |
| Product Code | 109120160 |
| Outlet Connection | 1'' Threaded |
| Inlet Connection | 1'' Threaded |
| Connection Type | R 1 |
| Max Pressure | 10 bar |
