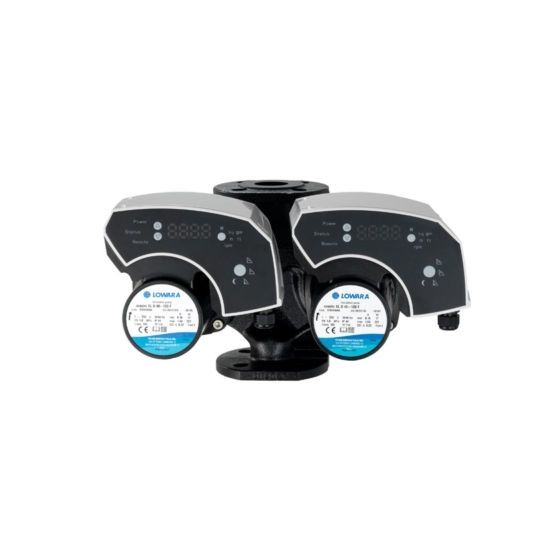

Lowara Ecocirc XLplus D 40-180F Circulator Pump - Twin Head

Lowara Ecocirc XLplus D 40-180F Circulator Pump - Twin Head

The ecocirc XL and XLplus circulators are engineered for simplicity and efficiency. They integrate cutting-edge hydraulics, motors, and intelligent controls in a user-friendly package. These wet rotor circulators provide the performance you need for large-scale applications.

Systems

• Hot water heating systems
• Air conditioning and cooling systems
• Domestic hot water systems
• Solar systems
• Geothermal systems

Duty Range

• Flow rate: up to 70 m3/h for single-head pumps and up to 135 m3/h for twin pumps
• Head: up to 12 m
• Maximum power consumption: 1510 [W]
• Temperature of pumped liquid: -10°C to +110°C
• Ambient temperature during operations: 0 to +40°C
• Maximum operating pressure: 10 bar (PN 10)

Features

• Proportional pressure control
• Constant pressure control
• Constant speed
• Night Mode
• Constant temperature control (ecocirc XLplus only)
• Differential temperature control (ecocirc XLplus only)
• Additional operating modes for twin head pumps including parallel and alternate operations (ecocirc XLplus only)
• Dry run protection
• Reading and settings of the pump by digital display and human interface with push buttons Insulation shell for single head pumps systems for heating
