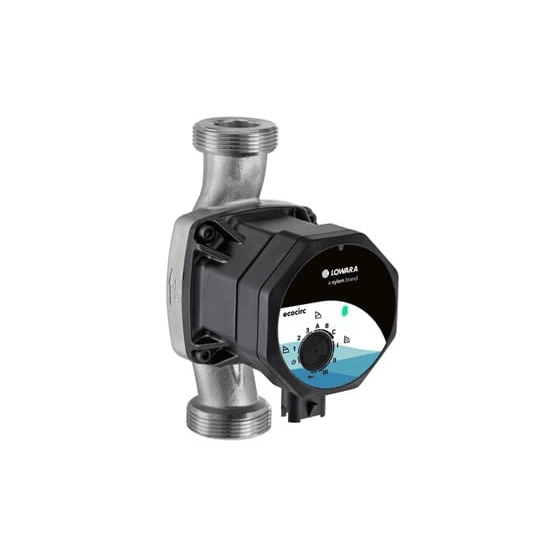

Lowara ecocirc L 25-8/180 N Variable Speed Circulator
The Lowara Ecocirc N circulation pumps are designed for water circulation in domestic hot water systems. With 14 models and multiple control modes, the new Ecocirc range offers a smarter choice in the domestic hot water circulators market by combining high efficiency, simplicity and reliability in a single cost effective package. Compact and easy to install, all models feature a unique “one turn” knob to set up control modes and speed settings. An interchangeable plug connection, automatic air-purge and a multicolor LED come as standard. The full Ecocirc range reaches an EEI level ≤ 0.18.
The pump can be used for:
- Refurbishment or extension of existing systems
- Single-family houses or apartment buildings
- Domestic hot water systems
Benefits
Efficiency
- Best-in-class energy efficiency (EEI ≤0.18)
- ECM motor for intelligent speed control
- Up to 80% lower power consumption
- Optimized hydraulics
Simplicity
- Multifunctional “one turn” knob
- Compact and easy to install
Reliability
- Robust proven design
- Stainless steel pump housing
- Dry-run protection
- Warnings and alarms visualization
Economy
- Insulation shell as standard
|
GENERAL SPECIFICATION |
ECOCIRC RANGE |
|
POWER SUPPLY |
Single-phase 200-240 V 50/60 Hz |
|
POWER |
Up to 60W |
|
MAXIMUM OPERATING PRESSURE |
10 bar (PN 10) |
|
TEMPERATURE OF PUMPED LIQUID |
-10°C – 110°C |
|
AMBIENT TEMPERATURE |
-10°C – 110°C by 0°C ÷ 40°C |
|
SOUND LEVEL |
≤ 43 dB(A) |
|
ELECTROMAGNETIC COMPATIBILITY |
EN 55014-1:2006 and EN 55014-2:1997 |
| Product Type | Hot Water Circulation Pump |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | Lowara |
| Model Range | Ecocirc N |
| Dimensions | G = G 1 ½ / R 1, H1 = 148mm, H2 = 47mm, H4 = 45mm, L = 180mm |
| Kw Rating | 0.06 kW |
| Max Flow | 3.8 m3/h |
| Max Head | 8m |
| Product Code | 60B0L1021 |
| Material | Stainless steel pump housing |
