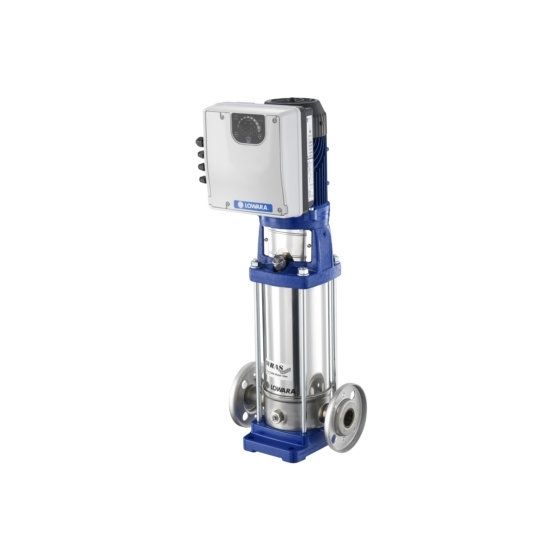

Lowara e-SVE 3SVE07F007P0M/2 0.75kW Vertical Multistage Pump (Single Phase)
The Lowara Smart Pump range incorporates state-of-the-art technology to optimize performance, communicate with other building systems and help you achieve your goals. Choose pre-programmed packages for easy, cost-effective installation — and benefit from this system’s power, intelligence and performance.
Lowara Smart Pumps combine three essential elements to ensure outstanding reliability, optimal savings and the shortest payback times. It’s not about individual components. It’s about a great team of three perfectly concerted elements:
- Ultra-premium IE5 motors for best-in-class efficiency, according to IEC/TS 60034-30-2
- Power drive system (drive and motor) in the highest efficiency class, IES2, according to EN 50598-2
- Hydraulic pump designed for exceptional Minimum Efficiency Index (MEI) ratings, according to EU Regulation No. 547/2012
The SVE pump is a non-self priming vertical multistage pump coupled with eSM drive. The pump casing is available with different configurations and connection types.
Main features pump
A full line of single-phase pumps provides enhanced hydraulic performance for residential, light industrial. The Smart Pump range can easily handle extreme environments, from -20°C to 50°C, without derating performance.
- Flowrate: up to 34 m3/h
- Head: up to 175 m
- Environment temperature: 0 ° C to + 50 ° C with no performance derating
- Temperature of pumped liquid: up to + 120 ° C for single-phase motor versions
- Maximum operating pressure 25 bar (PN 25)
Main features motor
The smart, easy-to-set integrated drive can operate single, twin or multipump systems of up to three pumps, with no need for an external control panel or PLC. The drive matches performance to demand, reducing energy use. And it allows smart pumps to communicate with other building systems in real time, maximising efficiency.
IEC/TS 60034-30-2 introduces “ultra-premium” IE5 efficiency performance. It’s the top efficiency level for motors designed to not operate directly on-line. Each Lowara Smart Pump is equipped with a permanent magnet motor that meets this IE5 standard, providing efficiency well above a standard IE3 asynchronous motor.
- Synchronous electric motor with permanent magnets (TEFC), closed structure, air-cooled
- Protection class IP55
- Insulation class 155 (F)
- Overload protection and locked rotor with automatic reset incorporated
Product Type | Vertical Multistage Pump |
---|---|
Custom Shipping | 0.000000 |
Manufacturer | Lowara |
Model Range | E-SVE |
Warranty | 1 Year Warranty |
Power Supply | 220V-240V Single Phase |
Kw Rating | 0.75 |
Product Code | 104632591 |
Orientation | Vertical |
