Lowara e-SV 22SV01T011T/D Vertical Multistage Pump

SKU
1016LD610
Special Price £1,847.16 £1,539.30 Regular Price £2,638.80 £2,199.00

Check Delivery is available in your area:




Found a better price? Phone iconCall us for a price match 0333 323 2329

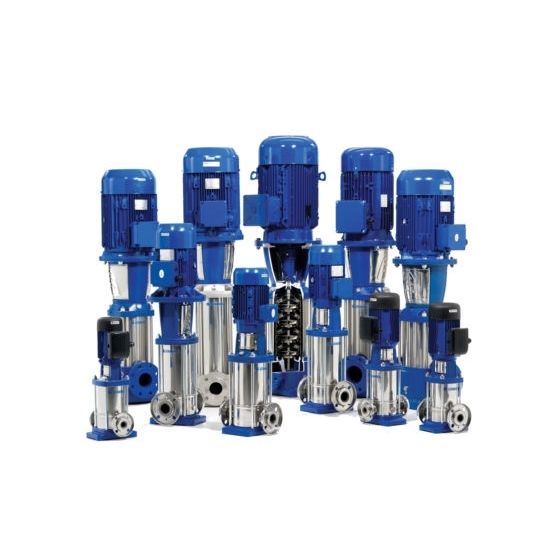

Lowara e-SV 22SV01T011T/D Vertical Multistage Pump

The SV pump is a non self priming vertical multistage pump combined with a normalized standard TEFC motor. The hydraulic part is kept in place between the upper cover and the pump body with tie rods. The pump casing is available with different configurations and connection types.

Main features hydraulic part

Flow rates: up to 160 m3/h (50Hz and 60Hz)

Heads: up to 330 m (50Hz); up to 280 m (60Hz)

Temperature of pumped liquid

  • from -30°C to +120°C for 1, 3, 5, 10, 15 , 22 SV standard version.
  • from -30°C to +120°C for 33, 46, 66, 92, 125SV standard version.

Direction of rotation: clockwise looking at the pump from the top down (marked with an arrow on the adapter and on the coupling).

Pumps (only for 10, 15, 22SV = 5,5kW, 33, 46, 66, 92, 125SV) are fitted standard with a balanced mechanical seal (according to EN 12756 and ISO 3069), which can be replaced without having to remove the motor from the pump.

Hydraulic performance levels according to ISO 9906 – Annex A.

Main features motor

Squirrel cage in short circuit, enclosed construction with external ventilation.

Standard supply Lowara motors up to 22 kW (included) for the 2-pole version. Other motor brands for higher powers.

Protection class IP55.

Insulation class F.

Performance levels according to EN 60034-1.

Working Point

  • Fluid: Water
  • Flow: 0 l/s
  • Head: 0 m
  • Temperature: 277 K
  • Working pressure: 0 kPa
  • Delivery port: DN 25 / PN25
  • Suction port: DN 25 / PN25
Model Motor, Hz
3SV02F0024T 3~220V/50Hz
3SV03F003M 1~230V/50Hz
3SV04F003M 1~230V/50Hz
3SV05F0024T 3~220V/50Hz
3SV06F005M 1~230V/50Hz
3SV07F007T 3~220V/50Hz
3SV08F0024T 3~220V/50Hz
3SV09F011T 3~220V/50Hz
3SV10F011T 3~220V/50Hz
3SV11F0024T 3~220V/50Hz
3SV12F011T 3~220V/50Hz
3SV13F015T 3~220V/50Hz
3SV14F0024T 3~220V/50Hz
3SV16F015T 3~220V/50Hz
3SV19F0024T 3~220V/50Hz
3SV21F022T 3~220V/50Hz
3SV23F0024T 3~220V/50Hz
3SV25F022T 3~220V/50Hz
3SV27F0034T 3~220V/50Hz
3SV29F030T 3~220V/50Hz
3SV31F030T 3~220V/50Hz
3SV33F0034T 3~220V/50Hz

Motor

Model
Nominal power Speed Make Degree of protection Frame size Motor design
3SV02F0024T 0.25 kW 1450 1/min Lowara IP 55 71 Three phase surface motor
3SV03F003M 0.37 kW 2900 1/min Lowara IP 55 71R Single phase surface motor
3SV04F003M 0.37 kW 2900 1/min Lowara IP 55 71R Single phase surface motor
3SV05F0024T 0.25 kW 1450 1/min Lowara IP 55 71 Three phase surface motor
3SV06F005M 0.55 kW 2900 1/min Lowara IP 55 71 Single phase surface motor
3SV07F007T 0.75 kW 2900 1/min Lowara IP 55 80 IE3 Three phase surface motor
3SV08F0024T 0.25 kW 1450 1/min Lowara IP 55 71 Three phase surface motor
3SV09F011T 1.1 kW 2900 1/min Lowara IP 55 80 IE3 Three phase surface motor
3SV10F011T 1.1 kW 2900 1/min Lowara IP 55 80 IE3 Three phase surface motor
3SV11F0024T 0.25 kW 1450 1/min Lowara IP 55 71 Three phase surface motor
3SV12F011T 1.1 kW 2900 1/min Lowara IP 55 80 IE3 Three phase surface motor
3SV13F015T 1.5 kW 2900 1/min Lowara IP 55 90 IE3 Three phase surface motor
3SV14F0024T 0.25 kW 1450 1/min Lowara IP 55 71 Three phase surface motor
3SV16F015T 1.5 kW 2900 1/min Lowara IP 55 90 IE3 Three phase surface motor
3SV19F0024T 0.25 kW 1450 1/min Lowara IP 55 71 Three phase surface motor
3SV21F022T 2.2 kW 2900 1/min Lowara IP 55 90 IE3 Three phase surface motor
3SV23F0024T 0.25 kW 1450 1/min Lowara IP 55 71 Three phase surface motor
3SV25F022T 2.2 kW 2900 1/min Lowara IP 55 90 IE3 Three phase surface motor
3SV27F0034T 0.37 kW 1450 1/min Lowara IP 55 71 Three phase surface motor
3SV29F030T 3.0 kW 2900 1/min Lowara IP 55 100 IE3 Three phase surface motor
3SV31F030T 3.0 kW 2900 1/min Lowara IP 55 100 IE3 Three phase surface motor
3SV33F0034T 0.37 kW 1450 1/min Lowara IP 55 71 Three phase surface motor

Shaft Seal

  • Type: Single seal
  • Material combination
  • Rotating Assembly: Q1-Silicon carbide
  • Fixed Assembly: B-Resin impregnated carbon
  • Elastomers: E - EPDM
  • Springs: G-AISI 316
  • Other Components: G-AISI 316

Pump

  • Material combination
  • Pump body: Stainless steel / AISI 304
  • impeller: Stainless steel / AISI 304
  • Diffuser: Stainless steel / AISI 304
  • Outer sleeve: Stainless steel / AISI 304
  • Shaft: Stainless steel / AISI 304
  • Adapter: Cast iron
  • Base: Aluminium
  • Coupling: Aluminium
  • Seal casing: Stainless steel / AISI 304
  • Coupling protection: Stainless steel / AISI 304
  • Shaft sleeve and bushing: Tungsten carbide
More Information
Product Type Vertical Multistage Pump
Custom Shipping 0.000000
Manufacturer Lowara
Model Range E-SV
Warranty 1 Year Warranty
Power Supply 400V-415V Three Phase
Kw Rating 1.1
Product Code 1016LD610
Orientation Vertical
