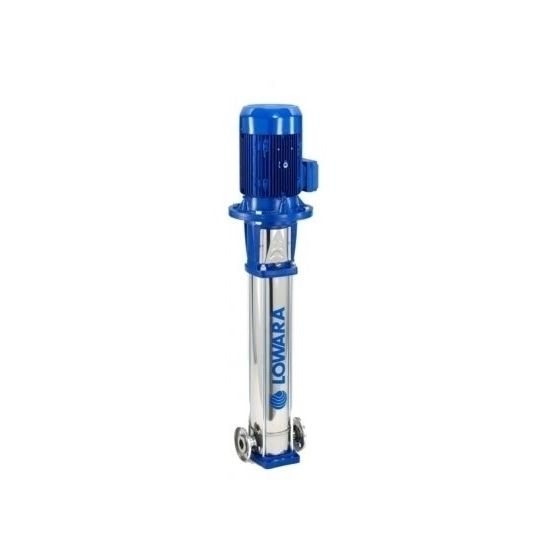

Lowara e-SV 1SV11F005T Vertical Multistage Pump

Lowara e-SV 1SV11F005T Vertical Multistage Pump

The e-SV range of pumps features 11 models, and can be specially configured for a wider range of applications. The e-SV is WRAS approved for potable water use. The SV pump is a non-self priming vertical multistage pump coupled to a standard motor. The liquid end, located between the upper cover and the pump casing, is held in place by tie rods. The pump casing is available with different configurations and connection types.

Applications

• Handling of water, free of suspended solids, in the civil, industrial and agricultural sectors.
• Pressure boosting and water supply systems.
• Irrigation systems.
• Wash systems.
• Water treatment plants.
• Handling of moderately aggressive liquids, demineralised water, water and glycol, etc.
• Circulation of hot and cold water for heating, cooling and conditioning systems.
• Boiler feed.
• Pharmaceutical food & beverage industries.

Specifications

• Delivery: up to 160 m³/h

• Head: up to 330 m
• Power supply: both single and three-phase
• Power: from 0.37 kW up to 55 kW
• Maximum operating pressure: 40 bar
• Temperature of pumped liquid: from -30 °C to 120 °C
• Protection: IP55​
• Squirrel cage in short circuit, enclosed construction with external ventilation.
• Standard supply Lowara motors up to 22 kW for the 2-pole version.Performance levels according to EN 60034-1.
