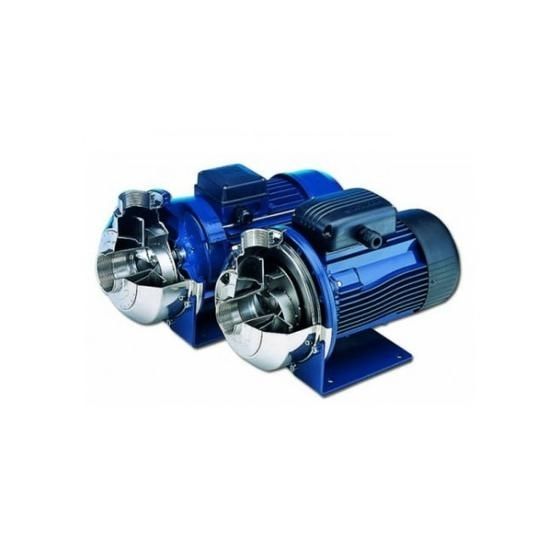

Lowara COM 350/11K/A Threaded Centrifugal Pump (1 Phase)

Lowara COM 350/11K/A Threaded Centrifugal Pump (1 Phase)

These pumps combine the advantages of an open impeller with those of the corrosion resistant stainless steel AISI 316 construction, which is particularly suited for handling moderately aggressive liquids with suspended solids.

Lowara CO pumps are suitable for washing vegetables, meats, and fish. Industrial washing machines that may contain solids e.g. bottles, jars, glasses & crates and process applications such as paint plants & general dirty liquid handling.

Applications

• Washing of metal parts and/or surface treatment.
• Washing of produce in the packaging industry.
• Food industry washing equipment and syatems.
• Dyeing plant and textile industry.
• Plants for the circulation and transfer of moderately viscous liquids, with light chemical aggressiveness.
• Industrial washing machines and commercial dishwashers.

Pump Specifications

• Delivery up to 900 l/min (54 m3/h).
• Head up to 24 m.
• Temperature of pumped liquid:-10°C to +110°C for standard version.
• Maximum working pressure: 8 bar (PN 8).
• Suspended solids handled up to:CO350: 11 mm.CO500: 20 mm.
• Asynchronous, squirrel cage rotor, enclosed construction in aluminium casing, external ventilation.
• Protection: IP55.Class 155 (F) insulation.
• Performances according to EN 60034-1.
• Maximum ambient temperature: 40°C.
• Standard voltage:- Single-phase version: 220-240 V 50 Hz, 2 poles with built-in automatic reset overload protection up to 1, 5 kW. For higher powers the protection must be provided by the user.
• Condensate drain plugs on all motors
