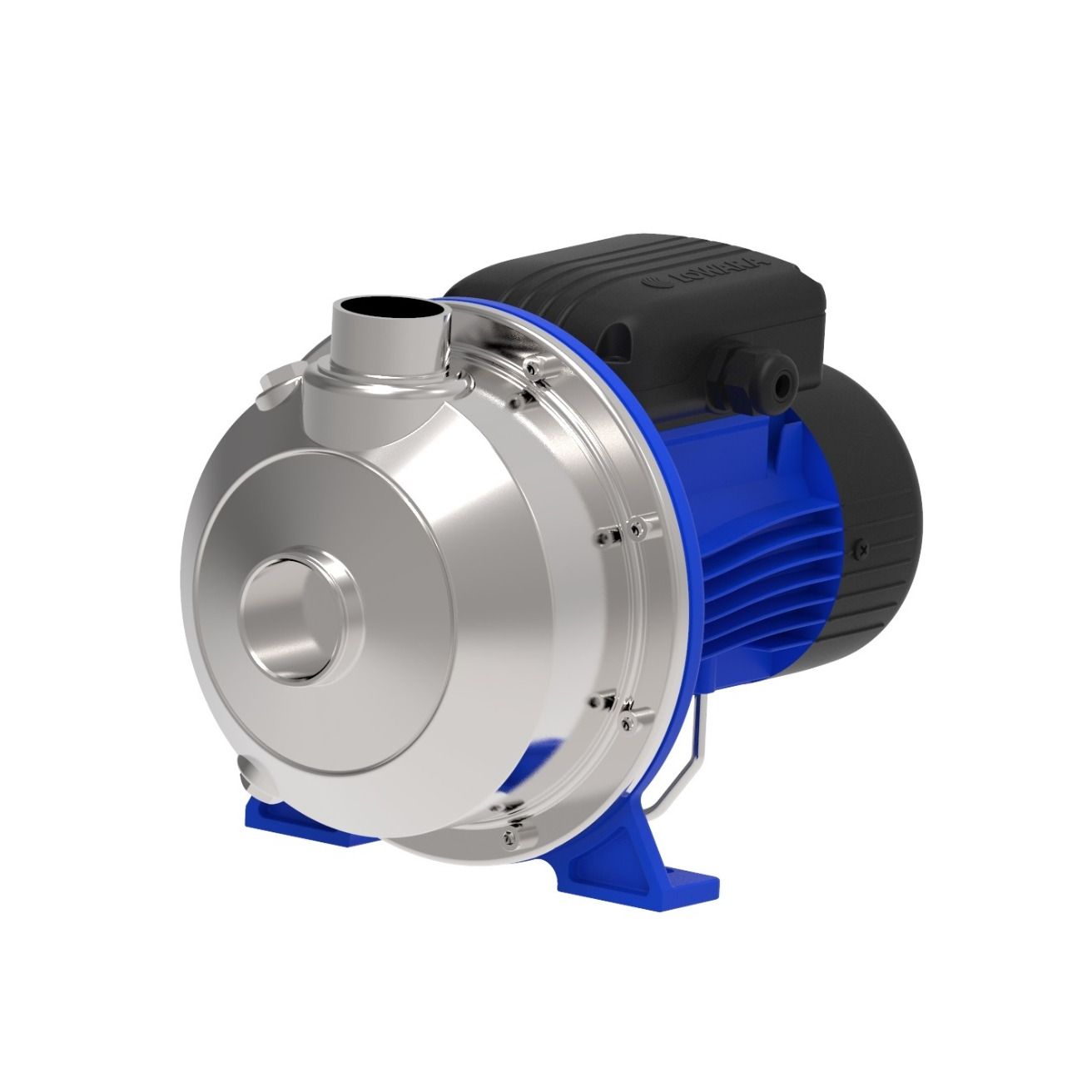

Lowara CO 350/03K/A Threaded Centrifugal Pump (3 Phase)

Lowara CO 350/03K/A Threaded Centrifugal Pumps combine the advantages of an open impeller with those of the corrosion-resistant stainless steel AISI 316 construction, which is particularly suited for handling moderately aggressive liquids with suspended solids.

Lowara CO pumps are suitable for washing vegetables, meats, and fish. Industrial washing machines that may contain solids e.g. bottles, jars, glasses & crates, and process applications such as paint plants & general dirty liquid handling.

Pump Specifications

• Delivery up to 300 l/min.
• Head up to 9.5 m.
• The temperature of pumped liquid:-10°C to +110°C for the standard version.
• Maximum working pressure: 8 bar (PN 8).
• Suspended solids handled up to:
• CO350: 11 mm.
• CO500: 20 mm.

Motor

• Asynchronous, squirrel cage rotor, enclosed construction in aluminum casing, external ventilation.
• Protection: IP55.
• Class 155 (F) insulation.
• Performances according to EN 60034-1.
• Maximum ambient temperature: 40°C.
• Three-phase version: 220-240/380-415 V 50 Hz, 2 poles; overload protection to be provided by the user.
• Condensate drain plugs on all motors.
