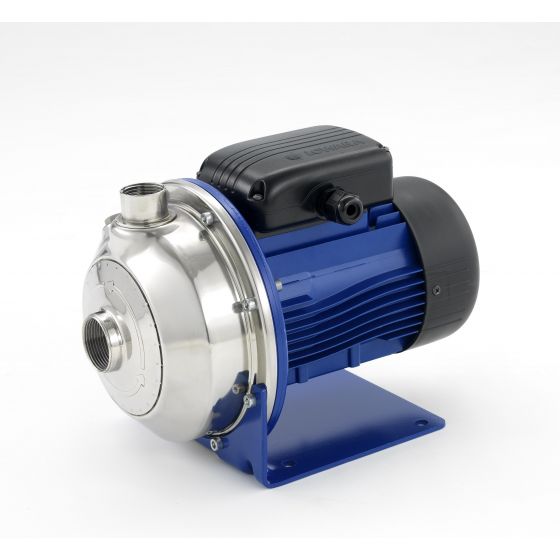

Lowara CEAM 80/5-V/A Centrifugal Pump (1 Phase)

Lowara CEAM 80/5-V/A Centrifugal Pump (1 phase)

Single-impeller centrifugal electric pump

Pump Coupling Motor
Close-coupled, single-impeller centrifugal pump featuring axial suction and radial discharge.

Construction Features
Compact construction, with pump coupled directly to motor; special motor shaft extension in common with the pump and supported by ball bearings.
Rotating assembly with back pull-out design, eliminating the need to disconnect the pump body from the pipe line.
Threaded suction and discharge ports (Rp UNI - ISO 7).

Applications
Version made of AISI 304
• Handling of chemically and mechanically non-aggressive water and liquids (*).
• Water supply.
• Irrigation.
• Water circulation (cold, hot, refrigerated).

Range Specification

• Delivery: up to 31 m³/h
• Head: up to 62 m
• Power supply: both single and three-phase 50 and 60 Hz
• Power: from 0.37 kW up to 3 kW
• Maximum operating pressure: 8 bar
• Temperature of pumped liquid: from -10 °C to 110 °C

Hydraulic performance table

Range Specification

• Delivery: up to 31 m³/h
• Head: up to 62 m
• Power supply: both single and three-phase 50 and 60 Hz
• Power: from 0.37 kW up to 3 kW
• Maximum operating pressure: 8 bar
• Temperature of pumped liquid: from -10 °C to 110 °C

Hydraulic performance table

*Maximum value in specified range.

For more information and technical drawings, see the attached data sheet
