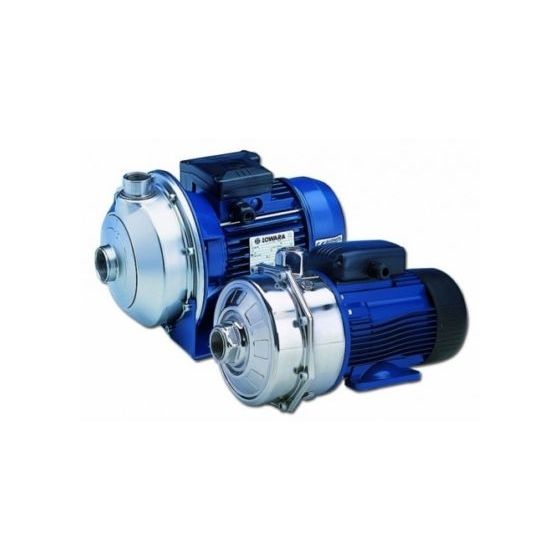

Lowara CEA 70/5-V/A End Suction Centrifugal Pump (3 ph)
Range Specification
- Delivery: up to 31 m³/h
- Head: up to 62 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.37 kW up to 3 kW
- Maximum operating pressure: 8 bar
- Temperature of pumped liquid: from -10 °C to 110 °C
Hydraulic performance table
| Rated Power | Rated Power | l/min 0 | 30 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 250 | 300 | 350 | 400 | 430 | 480 | 520 | |
| Pump Type | kW | HP | m3 /h 0 | 1,8 | 2,4 | 3,6 | 4,8 | 6 | 7,2 | 8,4 | 9,6 | 10,8 | 12 | 15 | 18 | 21 | 24 | 26 | 29 | 31 |
| CEA(M) 70/5 | 0,55 | 0,75 | 31,1 | 28,8 | 27,7 | 24,7 | 20,2 |
Q = DELIVERY
H = TOTAL HEAD METRES COLUMN OF WATER
Electrical Data at 50Hz, 2 Poles
| Pump Type | Motor Type | Input Power* | Input current* 220-240 V | Input current* 380-415 V |
| 3~ | kW | A | A | |
| CEA 70/5 | SM71BG/305 | 0,88 | 2,86 | 1,65 |
*Maximum value in specified range.
For more information and technical drawings, see the attached data sheet
| Product Type | Centrifugal Pumps |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | Lowara |
| Model Range | CEA |
| Warranty | 1 Year Warranty |
| Power Supply | 400V-415V Three Phase |
| Kw Rating | 0.55 |
| Product Code | 107330140XAA |
| Orientation | Horizontal |
