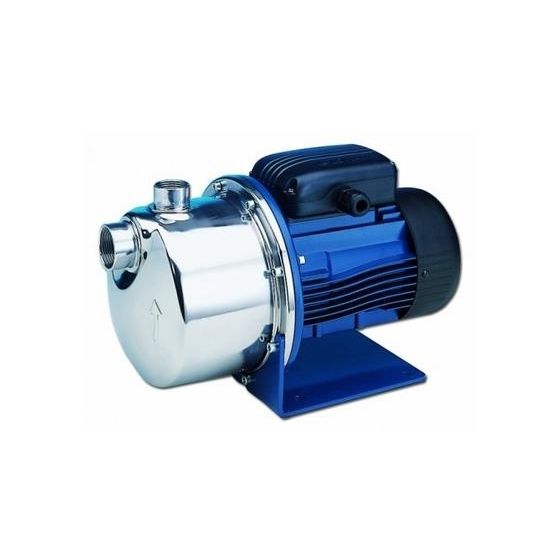

Lowara BGM 3/A Centrifugal Pump (1 ph)
Self-priming close-coupled centrifugal pumps with built-in ejector system, designed to remain primed even in the presence of water-dissolved gases. The extensive use of pressed stainless steel ensures a high-performance, durable and lightweight pump. Suitable for use with drinking water.
Applications
- Water distribution
- Pressure boosting
- Washing
- Rain water collection
- Swimming pools
- Fountains
Specifications
- Delivery: up to 4.20 m³/h
- Head: up to 53 m
- Power supply: both single and three-phase 50 and 60 Hz
- Power: from 0.37 kW up to 1.10 kW
- Maximum operating pressure: 8 bar
- Temperature of pumped liquid: from -10 °C to 40 °C
Materials
- Pump body: Stainless steel
- Impeller: Stainless steel
- Diffuser: Technopolymer
- Ejector: Technopolymer
- Seal housing: Stainless steel
- Mechanical seal: Ceramic/Carbon/EPDM
- Fill and drain plugs: Nickel-plated brass
- Elastomers: EPDM
Hydraulic performance table
| Rated Power | Rated Power | l/min 0 | 10 | 20 | 30 | 40 | 80 | 60 | 65 | 70 | |
| Pump Type | kW | HP | m3 /h 0 | 0,6 | 1,2 | 1,8 | 2,4 | 3 | 3,6 | 3,9 | 4,2 |
| BG(M) 3 | 0,37 | 0,5 | 36,9 | 30,6 | 25,6 | 21,5 | 17,7 | 13,8 |
Q = DELIVERY
H = TOTAL HEAD IN COLUMN OF WATER (METRES)
Electrical data
| Pump type | Motor type | Input power* | Input current* 220-240V | CAPACITOR |
| 1 ~ | kW | A | μ V 054 / F | |
| BGM3 | SM63BG/1045 | 0,67 | 2,96 | 14 |
*Maximum value in specified range
| Product Type | Centrifugal Pumps |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | Lowara |
| Model Range | BGM |
| Warranty | 1 Year Warranty |
| Power Supply | 220V-240V Single Phase |
| Kw Rating | 0.37 |
| Product Code | 107320A00 |
| Orientation | Horizontal |
