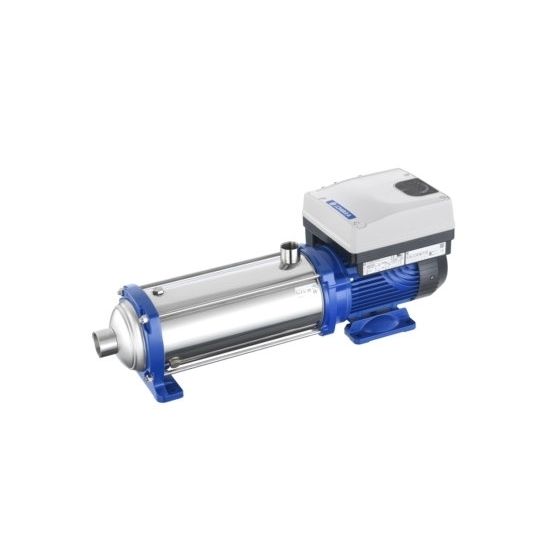

Lowara 1HME05S03M02VBE Horizontal Multistage Pump
The Lowara e-HME range of smart pumps for water supply and HVAC applications in residential and commerical buildings have highly efficient speed-controlled IE5 motors for maximum efficiency and effectiveness.
These pumps are 'plug and play' for simplicity of installation and commissioning. The embedded e-SM electronic drive extends the working area of a pump to maximise flexibility and enhance system performance.
The HME pump is a non-self priming horizontal multistage pump coupled with eSM drive. The pump casing is available with different configurations and connection types. Please note that e-SM variable speed drive pumps are supplied complete with pump, integrated drive, pressure transmitter, cable & plug.
Main features pump
- Flowrate: up to 29 m3/h
- Head: up to 155 m
- Environment temperature: 0 ° C to + 50 ° C with no performance derating
- Temperature of pumped liquid: up to + 120 ° C for single-phase motor versions
- Maximum operating pressure 16 bar (PN 16)
Main features motor
- Synchronous electric motor with permanent magnets (TEFC), closed structure, air-cooled
- Protection class IP55
- Insulation class 155 (F)
- Overload protection and locked rotor with automatic reset incorporated
Please see datasheet on the downloads tab for individual pump curve and dimensions.
| Product Type | Horizontal Multistage Pump |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | Lowara |
| Model Range | e-HME |
| Warranty | 1 Year Warranty |
| Power Supply | 220V-240V Single Phase |
| Kw Rating | 0.3 |
| Product Code | 104630011 |
| Orientation | Horizontal |
