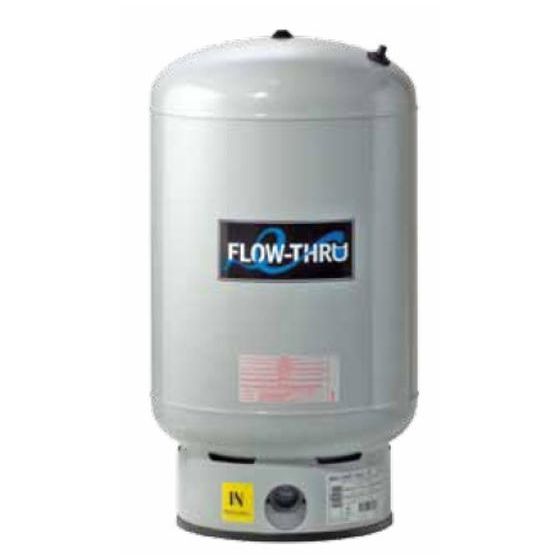

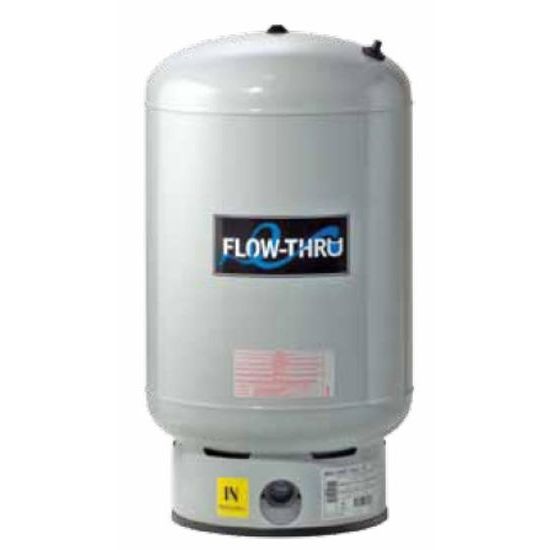

GWS FlowThru™ 170 Litre Steel Vertical Potable Expansion Vessel

GWS FlowThru™ 170 Litre Steel Vertical Potable Expansion Vessel


Global Water Solutions now guarantees the freshest water quality possible with the revolutionary Flow-Thru™ Series design, available in both composite and steel models. All Flow- Thru™ tanks feature GWS’s exlusive patented Flow-Thru™ technology which assures that your system will provide the freshest water quality possible by simply eliminating stagnation! The Flow-Thru™ connection diverts system water into, and more importantly out of the tank while the pump is running. This constant flushing action assures that the water in the tank remains as fresh as possible and eliminates the possibility of stagnant water during normal system operation. Both our steel and composite Flow-Thru™ tanks incorporate our proven patented controlled action diaphragm (CAD-2). CAD-2’s steel clench ring regulates movement and prevents the diaphragm from rubbing against the tank wall. Flow-Thru™ is also the ideal solution for constant pressure water system installers seeking to store water without the risk of stagnation. Flow-Thru™ tanks are quality tested at several stages on the production line to insure the structural integrity of every tank. Flow-Thru™ tanks represent the best value for the investment and are the best quality Flow-Thru™ vessels available today.

Features

• Patented Flow-Thru Technology for freshest water
• Available in Composite and Steel
• Patented CAD-2 diaphragm technology
• No stagnation
• Patented Watervane, total recirculation of the water
• Leak free air valve cap sealed with closed cell foam
• Comprehensive testing
• No maintenance

Specification

• Min. Operating Temperature: -10°C / 14°F (Avoid Freezing)
• Max. Operating Temperature: 90°C / 194°F (Steel)
• Max. Operating Pressure: 8.6 bar | 125 psi
• Pre-Charge Pressure: 1.4 bar | 20 psi
• Nominal Volume: 170 litre / 45 gal
• Dimensions:
  • Height - 943mm
  • Diameter - 533mm
  • Connection Height - 65mm
