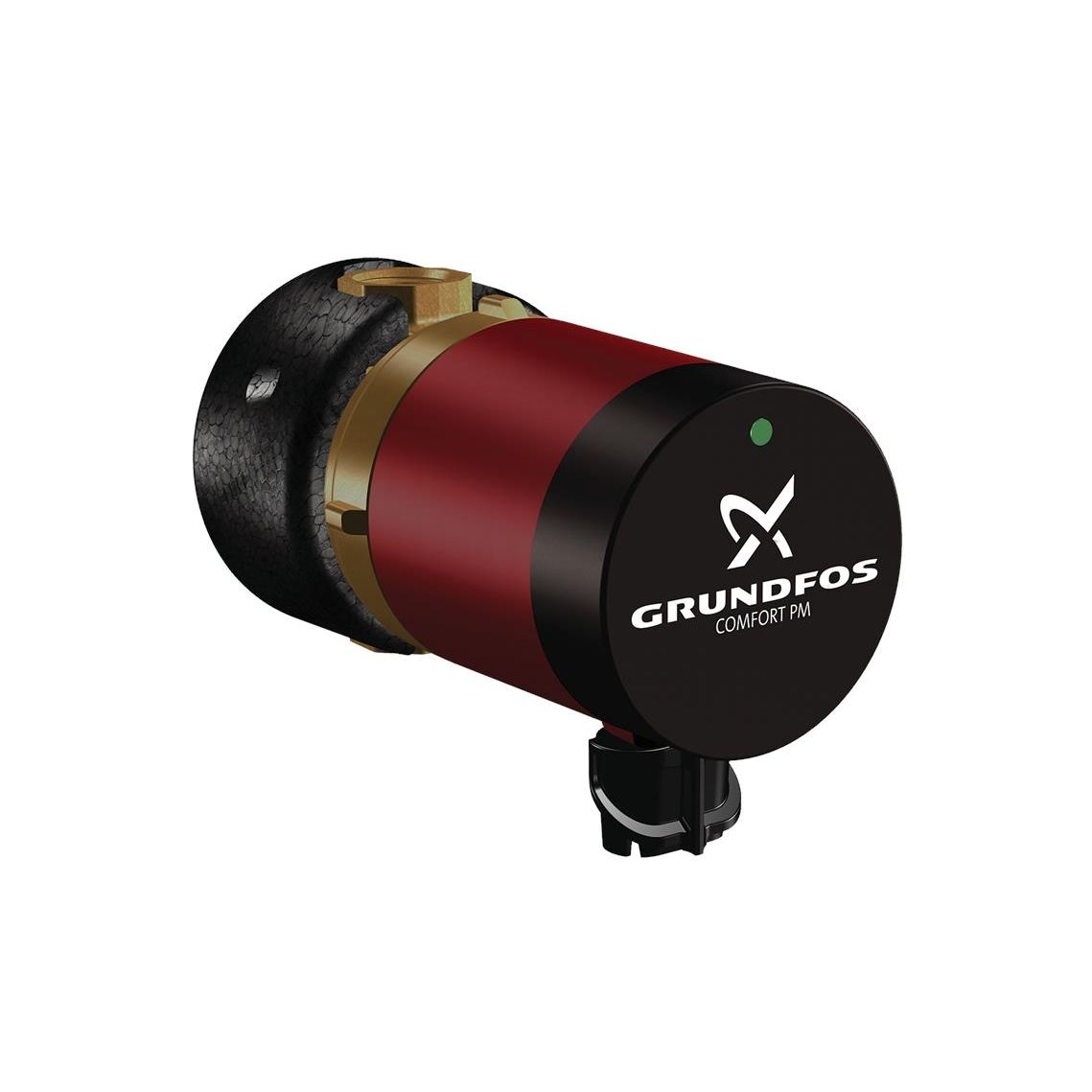

Grundfos UP15-14 B PM COMFORT Hot Water Service Circulator

Grundfos UP15-14 B PM COMFORT Hot Water Service Circulator

The Grundfos COMFORT BASIC hot water recirculation pump has a brass pump housing and is energy-efficient. The pump is made to supply hot water instantaneously to all taps in one- and two-family homes.

Pump with a spherical rotor that operates in the hot-water distribution system to circulate household hot water. The pump is designed for use in systems that have a return pipe. In such setups, the pump rapidly distributes hot water throughout the structure. It is powered by a low-noise, high-effeciency single-phase, 12-pole permanent-magnet motor in conformity with the EMC directive. The pump uses just 5 to 8 W of energy. The pump housing is composed of brass, which has a strong resistance to corrosion and is authorised for applications involving drinking water. The pump has a convenient COMFORT PM plug for quick and simple installation. Insulating shells are included with the pump to reduce heat loss to the environment.

Features:

• Quick and easy electrical installation thanks to the 1.5m cable with power connector
• Simple to maintain
• Thanks to the liquid lubricated bearing, there is minimal wear
• No chance of leakage because of a static seal
• Simple upkeep and cleaning thanks to the detachable pump head that fits practically all rival pump brands' housings
• Lead-free, brass, corrosion-resistant pump housing
• Due to integrated motor electronics, additional motor protection is not required.

Specification:

• Minimum ambient temperature: 0 °C
• Maximum operating pressure: 10 bar
• Type of conection: Rp
• Size of connection: 1/2 inch
• Pressure rating for connection: PN 10
• Port-to-port length: 80mm
