Grundfos UP 20-15N (150) Hot Water Service Circulator

SKU
98057205
Special Price £396.00 £330.00 Regular Price £618.00 £515.00

Check Delivery is available in your area:




Found a better price? Phone iconCall us for a price match 0333 323 2329

Grundfos UP 20-15N (150): Reliable Hot Water Circulation with Canned Rotor Technology


The Grundfos UP 20-15N (150) is a hot water circulator pump designed for domestic applications. It features a unique canned rotor design, offering several benefits:



Leak-proof operation: The pump and motor form a single unit, eliminating the need for a traditional shaft seal. This reduces the risk of leaks and simplifies maintenance.

Reliable lubrication: The bearings are lubricated by the pumped liquid itself, ensuring smooth operation and extended lifespan.

Durable construction: Key components like the shaft, rotor can, bearing plate, and impeller are made from corrosion-resistant materials, including ceramic, stainless steel, and composite materials. This ensures exceptional durability and resistance to hot water.



Additional Features:

  • Single-phase motor: The pump utilises a single-phase motor for easy integration with standard electrical systems. No additional motor protection is required.

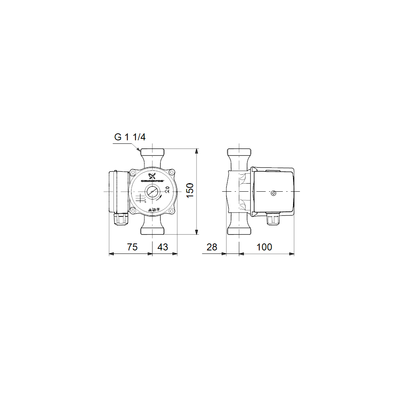

  • 150mm port to port dimension: This pump is suitable for systems with a 150mm pipe distance between inlet and outlet.



Benefits for homeowners:

Improved hot water delivery: The Grundfos UP 20-15N (150) ensures consistent hot water circulation throughout your home, reducing wait times for hot water at the tap.

Energy savings: The efficient design and leak-proof operation can contribute to lower energy consumption.

Long-lasting performance: The high-quality materials and robust construction guarantee reliable operation for years to come.

More Information
KIWA Approval No
Product Type Hot Water Circulation Pump
Custom Shipping 0.000000
Manufacturer Grundfos
Warranty 2 Year Warranty
Power Supply 220V-240V Single Phase
Kw Rating 65W
Product Code 98057205
Material Stainless steel pump housing
Port-to-Port Distance (mm) 150
