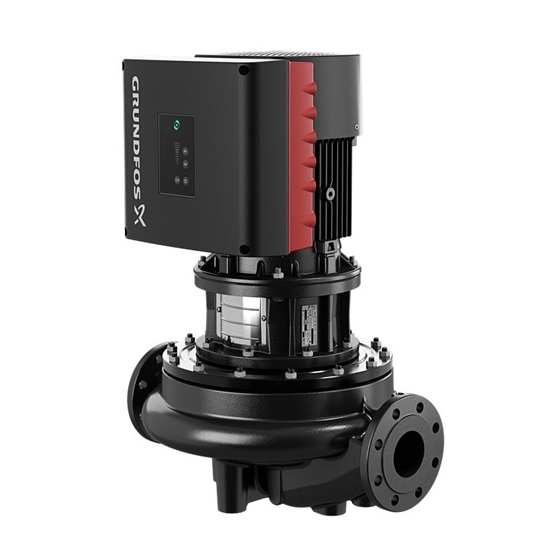

Grundfos TPE 32-230/2-A-F-A-BQQE Variable Speed Single Stage In-Line Pump
The Grundfos TPE 32-230/2-A-F-A-BQQE is an in-line, single-stage volute pump featuring identical suction and discharge port diameters. This top-pull-out design allows for easy maintenance and service by removing the motor, pump head, and impeller without disturbing the pipework. Equipped with an unbalanced rubber bellows seal and a shaft seal conforming to EN 12756, the pump incorporates a fan-cooled, permanent-magnet synchronous motor delivering IE5 efficiency according to IEC 60034-30-2.
| KIWA Approval | No |
|---|---|
| Product Type | In-line Circulator Pump |
| Custom Shipping | 0.000000 |
| Manufacturer | Grundfos |
| Model Range | TPE |
| Warranty | 1 Year Warranty |
| Dimensions | 280mm x 258mm x 429.7mm (WxDxH) |
| Power Supply | 220V-240V Single Phase |
| Kw Rating | 0.75 kW |
| Product Code | 99114823 |
| Material | Pump housing: Cast iron |
| Outlet Connection | DN32 Flanged |
| Port-to-Port Distance (mm) | 280 |
| Inlet Connection | DN32 Flanged |
| Variable Speed | Yes |
