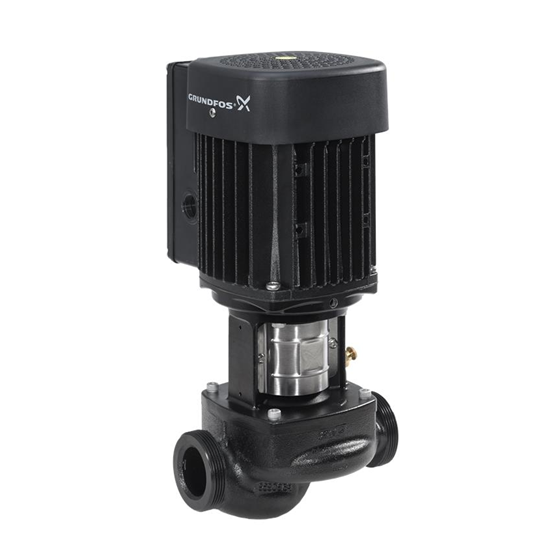

Grundfos TPE 25-90/2-A-O-A-BQQE Variable Speed Single Stage In-Line Pump
The Grundfos TPE 25-90/2-A-O-A-BQQE is an in-line, single-stage volute pump featuring identical suction and discharge port diameters. This top-pull-out design allows for easy maintenance and service by removing the motor, pump head, and impeller without disturbing the pipework. Equipped with an unbalanced rubber bellows seal and a shaft seal conforming to EN 12756, the pump incorporates a fan-cooled, permanent-magnet synchronous motor delivering IE5 efficiency according to IEC 60034-30-2.
| KIWA Approval | No |
|---|---|
| Product Type | In-line Circulator Pump |
| Custom Shipping | 0.000000 |
| Manufacturer | Grundfos |
| Model Range | TPE |
| Warranty | 1 Year Warranty |
| Dimensions | 180mm x 226mm x 380.9mm (WxDxH) |
| Power Supply | 220V-240V Single Phase |
| Kw Rating | 0.37 kW |
| Product Code | 98076621 |
| Material | Pump housing: Cast iron |
| Outlet Connection | 1 1/2" Threaded |
| Port-to-Port Distance (mm) | 180 |
| Inlet Connection | 1 1/2" Threaded |
| Variable Speed | Yes |
