Grundfos Hydro MPC-E 2 CRIE 3-11 Twin Pump Booster Set

Name: Grundfos Hydro MPC-E 2 CRIE 3-11 Twin Pump Booster Set
Brand: Grundfos
SKU: 98426902
Price: 13846.56 GBP
Availability: InStock

SKU

98426902

Special Price £13,846.56 £11,538.80 Regular Price £19,780.80 £16,484.00

Check Delivery is available in your area:

Postcode

Free Standard Delivery

SERVICE & MAINTENANCE

Found a better price? Call us for a price match 0333 323 2329

Product Description

Grundfos Hydro MPC-E 2 CRIE 3-11 Twin Pump Booster Set

Pressure booster system supplied as compact assembly according to DIN standard 1988/T5.

All pumps are speed-controlled.

From 0.37 to 11 kW, the booster system is equipped with CR, CRE, CRI, CRIE pumps with electronically commutated permanent-magnet motors with extremely high efficiency. The total efficiency of the motor including the frequency converter applies to IE5 level in IEC60034-31.

From 15 to 22 kW, the booster system is equipped with CR, CRE, CRI, CRIE pumps with motors with integrated frequency control. The total efficiency of the motor including the frequency converter is better than the IE3 level in IEC60034-31, even though this standard only applies to the motor.

Please note: This product is exempt from standard 2-3 day delivery and next day delivery. To find out lead times, contact our sales team on 0333 323 2329.

Hydro MPC-E maintains a constant pressure through continuous adjustment of the speed of the pumps.
The system performance is adapted to the demand through cutting in/out the required number of pumps and through parallel control of the pumps in operation.
Pump changeover is automatic and depends on load, time and fault.

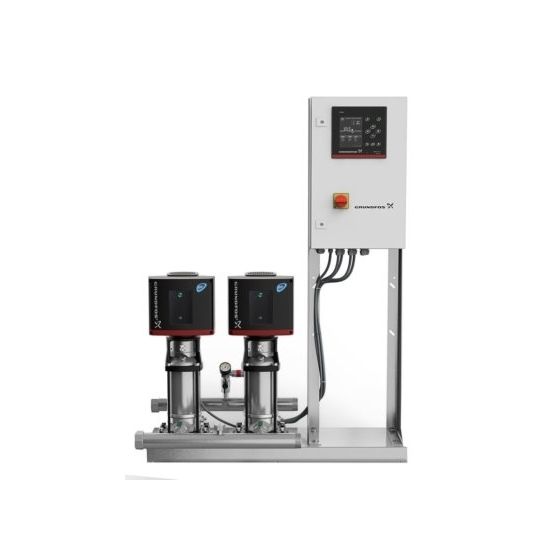

The system consists of these parts:
: 2 vertical, multistage, centrifugal pumps, type CRIE3-11
Pump parts in contact with the pumped liquid are made of stainless steel EN DIN 1.4301 Pump bases and heads are of either cast iron/stainless steel (CRI) or cast iron EN-GJS-500-7 (CR), depending on pump type; other vital parts are made of stainless steel EN DIN 1.4301 The pumps are equipped with a service-friendly cartridge shaft seal, HQQE (SiC/SiC/EPDM)

Two stainless steel manifolds to EN DIN 1.4571
Stainless steel base frame to EN DIN 1.4301 up to CR 90; above CR 90 the pumps are placed on a galvanized I-Beam frame
One non-return valve (POM) and two isolating valves for each pump
Non-return valves are certified according to DVGW, isolating valves according to DIN and DVGW
Adapter with isolating valve for connection of diaphragm tank
Pressure gauge and pressure transmitter (analog output 4-20 mA)
Control MPC in a steel cabinet, IP54, including main switch, all required fuses, motor protection, switching equipment and microprocessor-controlled CU 352.

Dry-running protection and diaphragm tank are available according to the list of accessories.

Pump operation is controlled by Control MPC with the following functions:

Intelligent multipump controller, CU 352.
Constant-pressure control through continuously variable adjustment of the speed of each individual pump.
PID controller with adjustable PI parameters (Kp + Ti).
Constant pressure at setpoint, independent of inlet pressure.
Soft pressure build-up (To prevent water hammer during startup).
On/off operation at low flow.
Automatic cascade control of pumps for optimum efficiency.

Selection of min. time between start/stop, automatic pump changeover and pump priority.
Automatic pump test function to prevent idle pumps from seizing up.
Possibility of standby pump allocation.
Possibility of backup sensor (redundant primary sensor).
Secondary sensor (Possible to switch to another sensor/setpoint).
Multi-sensor (up to 6 sensors to influence the setpoint).
Manual operation.
Possibility of external setpoint influence.
Log function.
Setpoint ramp.
Possibility of digital remote-control functions:
System on/off.
Max., min. or user-defined duty.
Up to 6 alternative setpoints.
Digital inputs and outputs can be configured individually.
Pump and system monitoring functions:
Minimum and maximum limits of current value.
Inlet pressure.
Non-return valve monitoring.
Motor protection.
Sensors and cables monitored for malfunction.
Alarm log with the previous 24 warnings/alarms.
Display and indication functions:
Colour screen display.
Green indicator light for operating indications and red indicator light for fault indications
Potential-free changeover contacts for operation and fault.
Grundfos bus communication.

It is possible to add CIM communication modules for communicating with Scada/BMS.

Pumps, piping, cabling complete as well as Control MPC are mounted on the base frame. The booster system has been preset and tested.

Flow media:		Water
Allowed liquid temp.:		5 °C .. 60 °C
System pressure max.:		16 bar
Flow (Plant):		11 m³/h
Flow without one stand-by pump acc. DIN 1988/T5:		11 m³/h
Mains suply:		380-415 V
Nom. current of plant:		5.4 A
Number of main pumps:		2
Nominal power:		1.5 kW
Starting main:		electronically

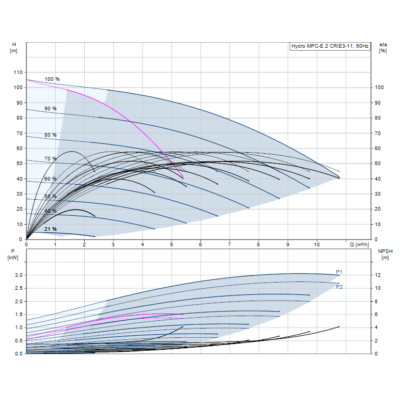

Maximum head:		105 m
Maximum flow:		11 m³/h

Specification

More Information
Product Type	Booster Set
Booster Type	Twin Pump
Custom Shipping	0.000000
Manufacturer	Grundfos
Model Range	Hydro MPC-E 2
Product Code	98426902
