Grundfos GT-U 200 Litre Potable Expansion Vessel - 16 Bar
The Grundfos GT-U Expansion Vessel (bladder) Vertical installation, maximum pressure 16 bar, pre-charge pressure 4 bar.
The expansion vessel body is made of steel and is factory pre-charged with nitrogen. All parts in contact with water are either made of stainless steel or coated for protection against corrosion. The replaceable bladder for vessels with a volume exceeding 60 litres is made of high-quality rubber material suitable for potable-water applications, such as booster systems, pressurisation and water hammer arresting.
Expansion vessel for cold-water applications are long-life vessels ideally suited for controlling the pressure in domestic as well as industrial applications.
GT expansion vessel can be integrated in many different systems with a wide variety of pumps. The large number of tank sizes and types available makes it possible to select the pressure vessel that best suits the application and system in question.
Applications
- Domestic water supply systems
- Booster systems
- Irrigation systems
- Industrial systems.
| Product Type | Expansion Vessels |
|---|---|
| Custom Shipping | 0.000000 |
| Manufacturer | Grundfos |
| Model Range | GT-U |

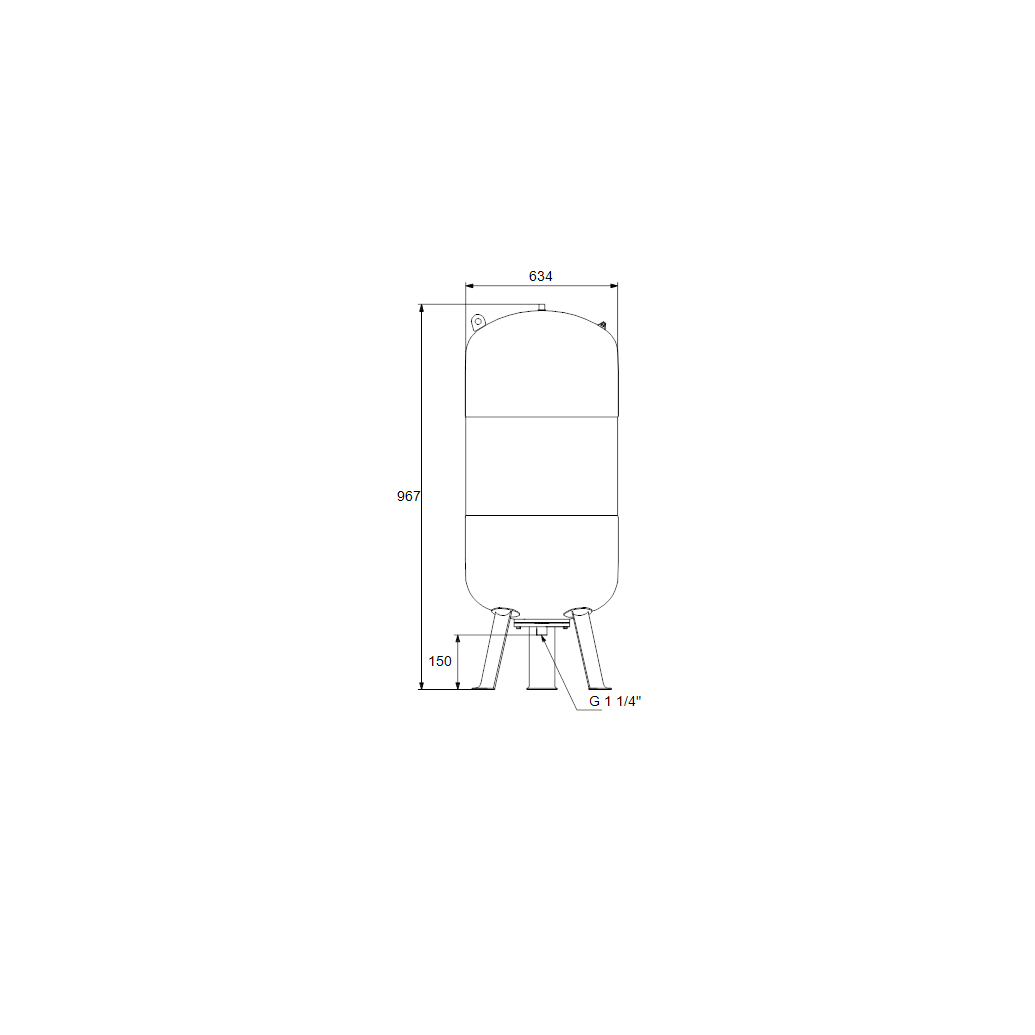

| Dimensions | 634 x 967mm |
| Volume / Capacity | 200 Litre |
| Product Code | 96603422 |
| Material | Carbon steel |
| Connection Type | 1 1/4" |
| Positioning | Floor standing |
| Orientation | Vertical |
| System Type | Potable (Drinking) |
| Vessel Pre-Charge Pressure | 4 bar |
| Max Pressure | 16 bar |
| Max Temperature | 70°C |
