Grundfos GT-HR 80 Litre Expansion Vessel - 6 Bar

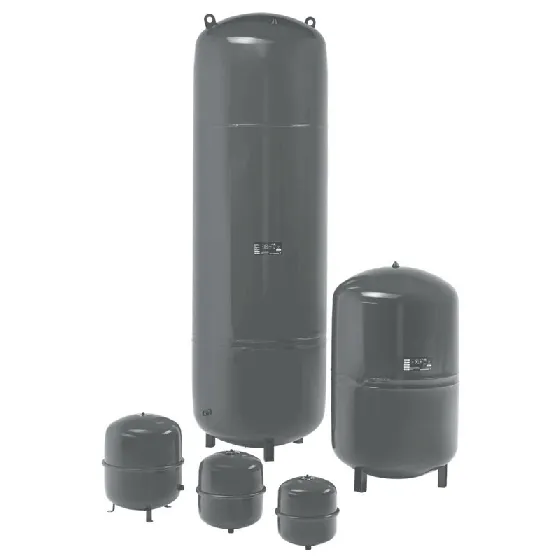

The GT-HR tanks are conventional diaphragm-type expansion vessel ranging from 8 to 1000 litres for 6 bar working pressure for closed heating systems and chilled water applications. These tanks can be incorporated in an expansion system in a tiny household or a large multi-storey building.
GT-HR tanks can be used with any Grundfos pump.
The GT-HR tanks are available in sizes ranging from 8 to 1000 litres and are suitable for vertical installation. The tanks have a non-replaceable diaphragm that is pre-charged with nitrogen (1.5 bar). The tanks have a non-toxic butyl rubber diaphragm, dividing the tank chamber into two compartments. The upper compartment contains compressed nitrogen. The lower compartment has a liner of polypropylene (PP) and is filled with water from the pump.
Applications
- Domestic - heating and chilled-water systems
- Commercial - building heating and chilled-water systems
- Industrial - heating and chilled-water systems.
- 1" Connection
| Delivery Estimate | In stock |
|---|---|
| Product Type | Expansion Vessels |
| Custom Shipping | 0.000000 |
| Manufacturer | Grundfos |
| Model Range | GT-HR |

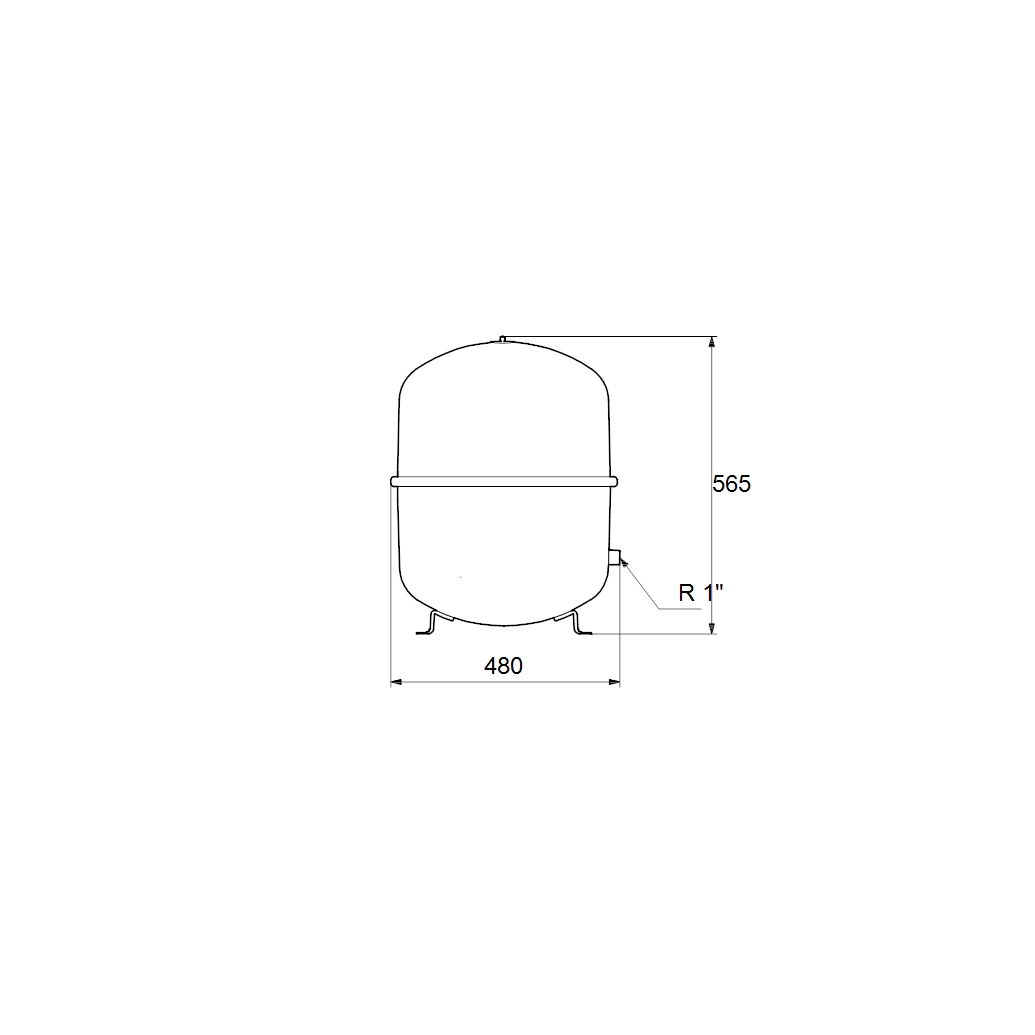

| Dimensions | 480 x 565mm |
| Volume / Capacity | 80 Litre |
| Product Code | 96573396 |
| Material | Carbon steel |
| Connection Type | 1" |
| Positioning | Floor standing |
| Orientation | Vertical |
| System Type | Heating |
| Vessel Pre-Charge Pressure | 1.5 bar |
| Max Pressure | 6 bar |
| Max Temperature | 90°C |
