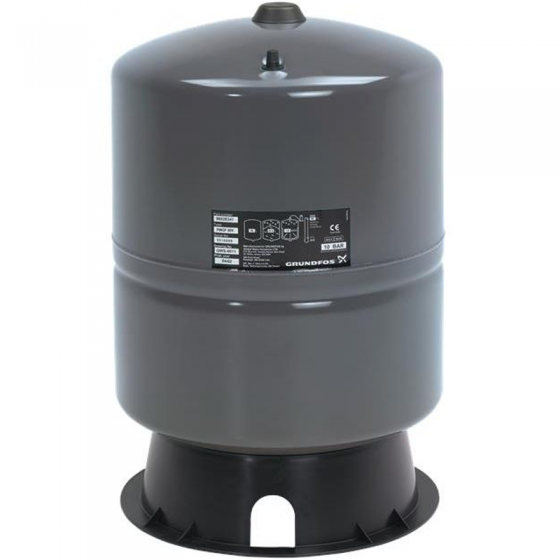

Grundfos GT-H 60 Litre Vertical Expansion Vessel - 10 Bar
The Grundfos GT expansion vessel for cold-water applications are long-life tanks ideally suited for controlling the pressure in domestic as well as industrial applications.
GT tanks can be integrated in many different systems with a wide variety of pumps. The large number of tank sizes and types available makes it possible to select the pressure tank that best suits the application and system in question
GT-H (diaphragm) the polypropylene liner combined with an FDA approved high-grade butyl diaphragm makes up the water chamber. This is held against the tank wall with a steel clench ring. The brass air valve, sealed by a threaded O-ring valve cap, prevents air leaks.
Applications
- Domestic water supply systems
- Booster systems
- Irrigation systems
- Industrial systems.
| Product Type | Expansion Vessels |
|---|---|
| Manufacturer | Grundfos |
| Model Range | GT-H |
| Warranty | 1 Year Warranty |

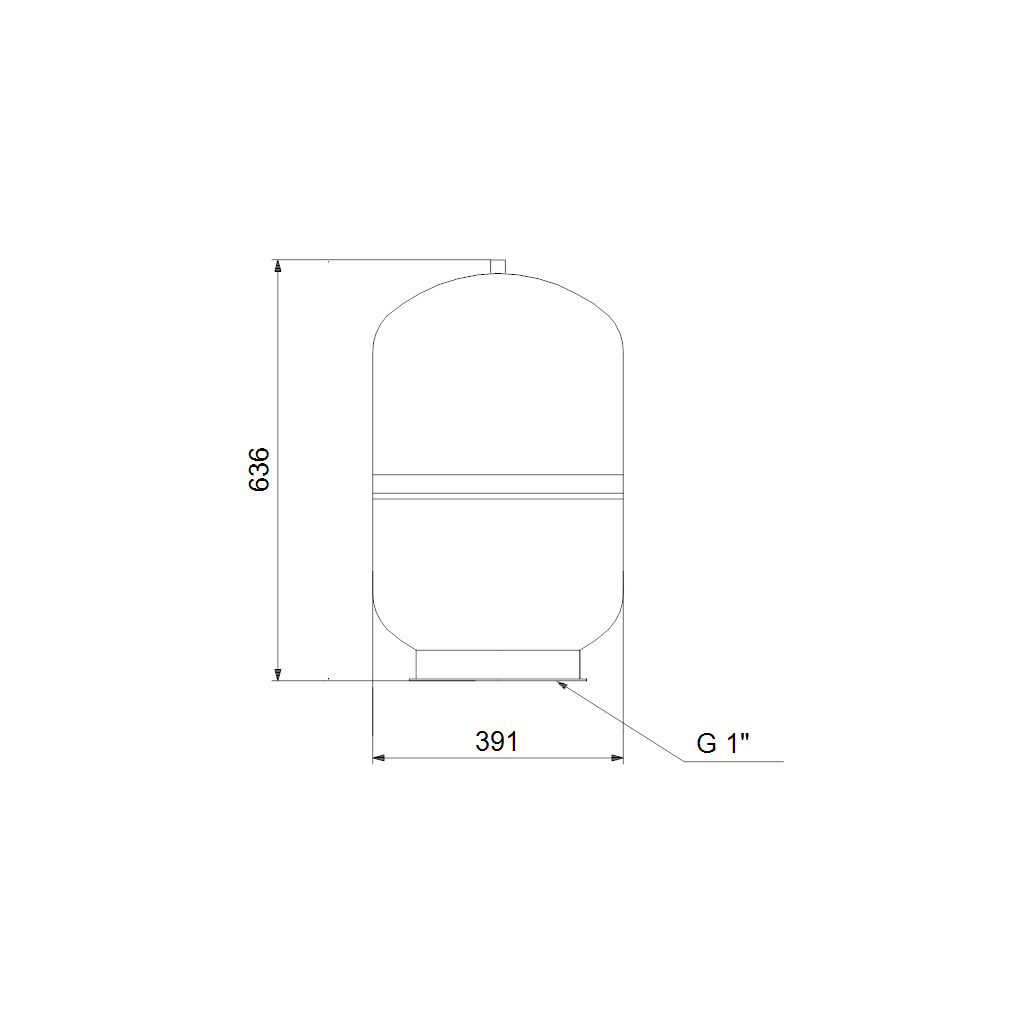

| Dimensions | 391 x 636mm |
| Volume / Capacity | 60 Litre |
| Product Code | 96528341 |
| Material | Carbon steel / Polypropylene |
| Connection Type | 1" |
| Orientation | Vertical |
| Positioning | Floor standing |
| System Type | Potable (Drinking) |
| Vessel Pre-Charge Pressure | 1.9 bar |
| Max Pressure | 10 bar |
| Max Temperature | 90°C |
