GRP Enclosure 601 - 1150 x 650 x 1280mm High

GRP Enclosure 601 - 1150 x 650 x 1280mm High

General Construction

Complete Pump Supplies Range of enclosures are manufactured from the highest quality grp materials to withstand the rigourous of the harshest weather conditions. All enclosures have a tough weather resistant polyester gel coat outer, reinforced with grp laminate incorporating an encapsulated polyurethane foam core to provideinsulation. External colour options are RAL6005 Green or BS 00A05 Industrial Grey (Other Colours are avaialable on request).

Insulation is 25mm thick as standard, this can be increased to a maximum of 100mm for extreme temperature applications. Internal finish is a durable polyester gel coat finish in white. Configurations start as small as 800 x 200 x 800mm high, up to infinate size.  Available as one-piece units for smaller applications or in sections in 500mm increments in length and width up to a height of 3 metres.  Door furniture includes stainless steel hinges and fixings, yale type nightlatch lock assemblies, external door handle, internal door check straps and stays.

Product Range

Smaller enclosures are available from Complete Pump Supplies as a single piece unit which are normally delivered to site palletised and only require fixing down to a structural slab or raised kerbing.

Larger enclosures are constructed in a metric modular format and can be assembled at our works for delivery as a single unit or where access restrictions apply, we can supply in sections to allow assembly on site.

Dimensions

• Internal Dimensions: 1000 x 500 x 1200mm High
• External Dimensions: 1150 x 650 x 1280mm High
• Door Configuration: Single 800 x 1000mm High Opening
• Internal Ply Mounting Board: (Included) 600 x 600mm High

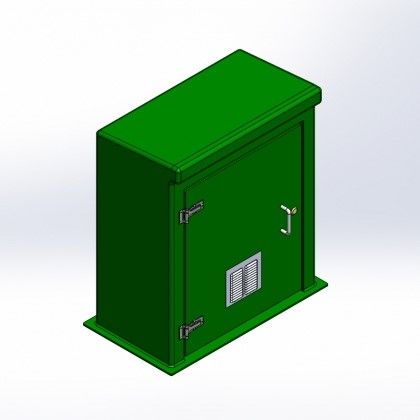

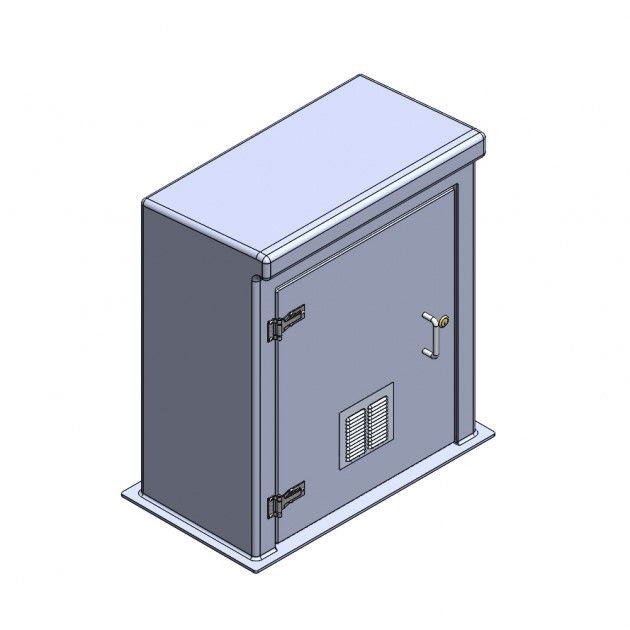

The image shown may not represent the specific product and is provided to illustrate the general design & arrangement of the products within the range. Please note: Painted steel flooring skids and wiring of electrical items are not included as standard. If you require either of these, please contact our sales team on 0333 323 2329 to request a quotation.
