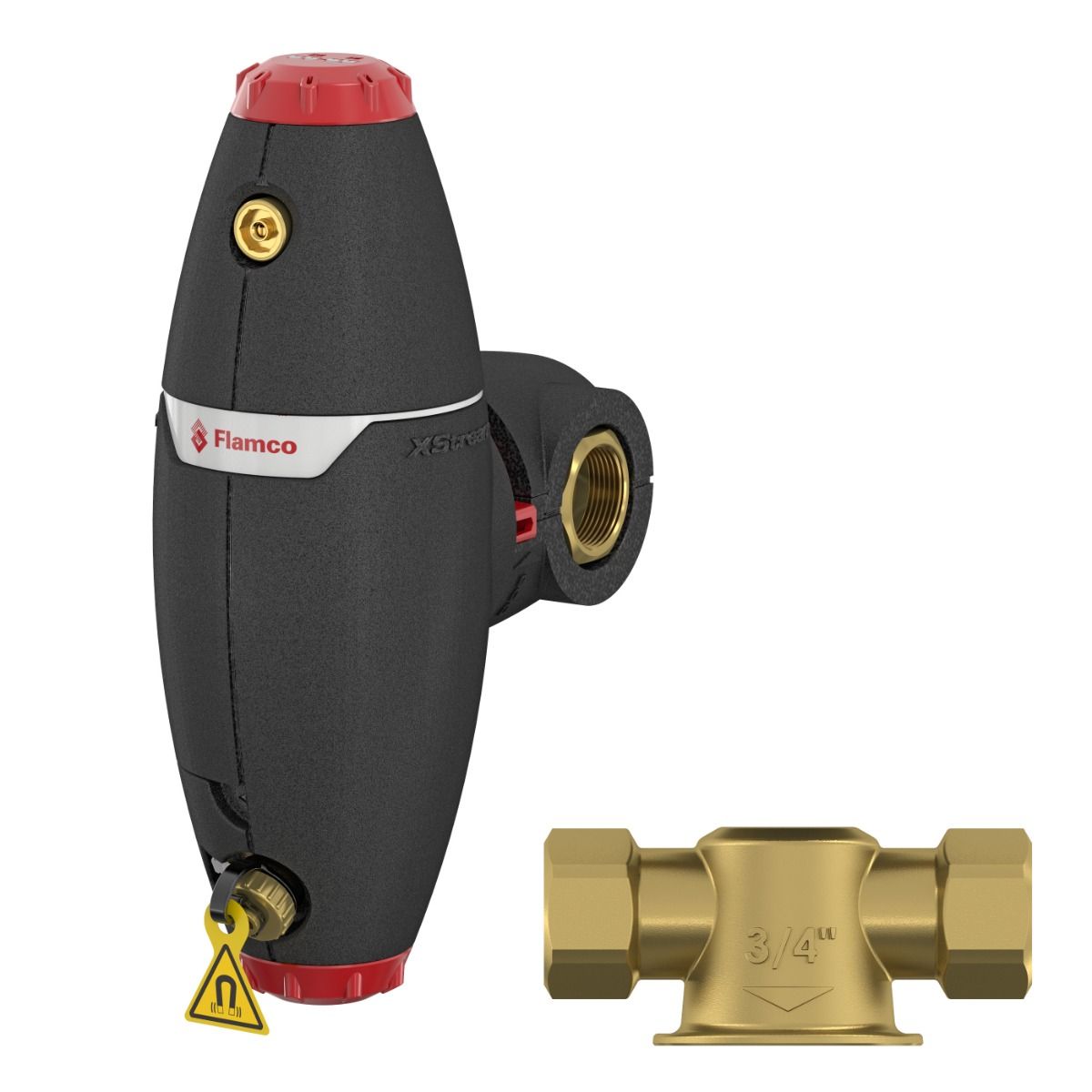

Flamco XStream Vent-Clean 1 1/2 F (DN40) G1½"F Air & Dirt Separator

Flamco XStream Vent-Clean 1 1/2 F (DN40) G1½"F Air & Dirt Separator

Lower energy consumption, reduced wear and tear, fewer failures, a longer lifespan, and thus a higher efficiency of heating and cooling installations are all guaranteed by Flamco XStream air and dirt separators.

A powerful combo - Using a separate air and dirt separator is always better from an installation standpoint. The Flamco XStream Vent-Clean is the best option for installations when it is challenging to install both a Flamco XStream Vent and a Clean.

• With an unique ECO/ MAX mode.
  • In the ECO mode a part of the system water (partial flow) is led through the Flamco XStream.
    • Kv * [m3/h] (ECO): 14.8
  • In the MAX mode all the system water is led through the Flamco XStream.
    • Kv * [m3/h] (MAX): 63.0
• Up to 15% less energy consumption of the heating system.
• *Up to 6% more efficiency of the heating system.
• *The unit is 360 degree rotatable for ease of installation.
• No account needs to be taken of the flow direction of the installation. This prevents installation errors.
• Thanks to the powerful internal magnet, the Flamco XStream Clean and the Vent-Clean have a great attraction to magnetite.

* Calculated according to the Hysopt method in a system with a gas boiler and manually operated radiator valves.

Technical Specification

• Materials: brass and high-quality plastic.
• Minimum/Maximum operating temperature: -10 °C / 120 °C.
• Minimum/Maximum system pressure: 0,2 / 10 bar.
• Minimum/Maximum operating pressure: 0,2 / 6 bar.
• Suitable for addition of glycol-based anti-freeze up to 50%.
• Minimum/Maximum flow velocity: 0.2 / 3 m/s.
• Medium pH: 5 / 10.
• Material: EPP insulation. λ : 0.036 W/m.
• Average thickness insulation: 20 mm.
