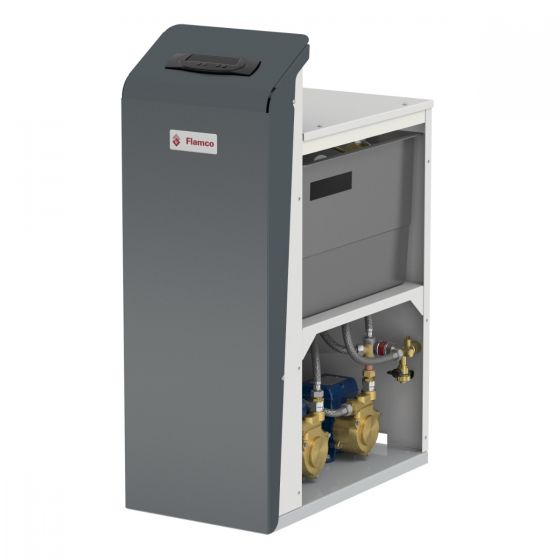

Flamco Pro PU 181 Single Pump Pressurisation Unit 1-8bar
Â
Compact and completely enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed systems to meet the minimum system pressure requirement. The Pro PU is a floor standing, flow rate (up to 18 l/min) top-up pressurisation unit with 18 litre internal break tank. Ideal for industrial, commercial, or large-scale residential applications. Single or twin pump configurations are available.
Â
Max. delivery pressure: 8 bar
System Volume (Guide): < 300,000 litres.
Â
Product Features:
- For system volumes up to 300,000 litres.
- Pressure setting in 0.1 bar increments.
- Dry Run Protection.
- Anti-Seize Routine (Pump is pulsed for 2 seconds if inactive for 60 days, must be enabled at time of commissioning).
- Electric pump, 230V 50Hz 1ph.
- Colour: Grey (RAL 7016).
- System fill mode.
- Onscreen Service Reminder - 12 Months.
- MODBUS RTU Communication Protocol.
- Password protected.
- Bi-directional programming menu.
- Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
- Pump pulse option.
- Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
- Optional Additional Volt Free Contacts (Requires an additional factory fitted expansion board, contact us for more information): Low Pressure Warning (N/O), High Pressure Warning (N/O), Low Water In Break Tank (N/O), Low Additive In Holding Tank (N/O), Pump 1 Run For Topup (N/O), Pump 2 Run For Topup (N/O).
Product Type | Pressurisation Units |
---|---|
Custom Shipping | 0.000000 |
Manufacturer | Flamco UK |
Model Range | Pro PU |
Warranty | 1 Year Warranty |
Dimensions | 609 x 325 x 915mm (WxDxH) |
Power Supply | 220V-240V Single Phase |
Kw Rating | 0.75 kW |
Product Code | 21602 |
Outlet Connection | 15mm compression |
Inlet Connection | 15mm compression |
Positioning | Floor standing |
System Type | Heating |
Pump Quantity | 1 Pump |
