Flamco PressDS Plus 250D 3in1 Unit - Twin Pump Pressurisation Unit

SKU
45102
Special Price £9,199.27 £7,666.06 Regular Price £11,499.10 £9,582.58

Check Delivery is available in your area:




Found a better price? Phone iconCall us for a price match 0333 323 2329

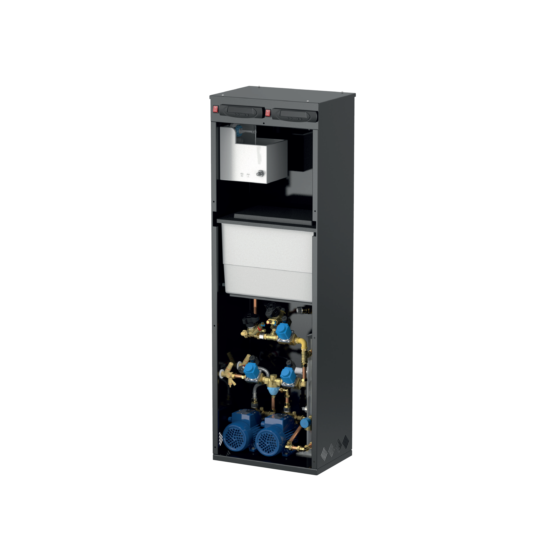

Flamco PressDS Plus 250D Pressurisation/Degassing/Dosing Unit - 3in1 Twin Pump Floor Standing - Compact, totally enclosed combined digital pressurisation unit with vacuum degasser and additive tank for use on sealed systems in order to provide a minimum system pressure requirement and effective dissolved gas removal and adding additive to system. The correct fluid mix is blended on demand at the time of system top-up.

The PressDS Plus (Pressurisation/Degassing/Dosing System) is a compact, totally enclosed combined digital pressurisation unit with vacuum degasser and additive tank for use on sealed systems in order to provide a minimum system pressure requirement, effective dissolved gas removal and adding additives to the system. The correct fluid mix is blended on demand at the time of system top-up. System Volume (Guide): < 300,000 litres, designed for commercial use.



Product Features

  • For system volumes up to 300,000 litres.
  • Fluid Protection Category 5 (AB Weir Overflow).
  • Onscreen Service Reminder - 12 Months. Onscreen message when additive tank is empty.
  • Individual controllers for pressurisation and degassing function.
  • Vacuum degassing, turbo and normal interval modes.
  • 18 litre additive tank.
  • Mix ratios from 1% to 50% user configurable balancing valves.
  • Top-up pressurisation unit (<18.0 l/min).
  • Electric pump, 230V 50Hz 1ph (2160D: 415V 50Hz 3ph).
  • Colour: Black (RAL 9005).
  • MODBUS RTU Communication Protocol.
  • System fill mode.
  • Password protected.
  • Pressure setting in 0.1 bar increments.
  • Sequential programming menu.
  • Pump pulse option.
  • Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
  • Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
  • Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
  • Optional Additional Volt Free Contacts: Low Pressure Warning (N/O), High Pressure Warning (N/O), Low Water In Break Tank (N/O), Low Additive In Holding Tank (N/O), Pump 1 Run For Topup (N/O), Pump 2 Run For Topup (N/O).
More Information
Product Type Pressurisation Units
Custom Shipping 0.000000
Manufacturer Flamco UK
Model Range PressDS Plus

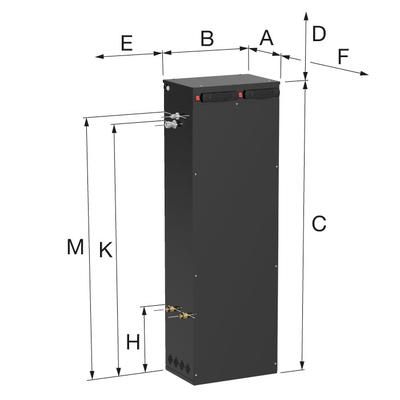

Dimensions 320 (A) x 480 (B) x 1480 (C) x 500 (D) x 150 (E) x 800 (F) x 340 (H) x 1270 (K) x 1320mm (M)
Power Supply 220V-240V Single Phase
Kw Rating 2 x 0.5 kW
Product Code 45102
Tank Insulation Not insulated
Connection Type 1/2"
Positioning Floor standing
System Type Heating
Pump Quantity 2 Pump
