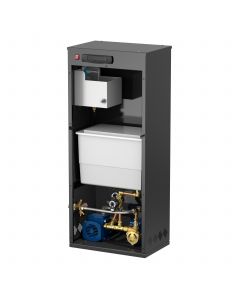

Flamco PressDS Plus 2160D 3in1 Unit - Twin Pump Pressurisation Unit

Flamco PressDS Plus 2160D Pressurisation/Degassing/Dosing Unit - 3in1 Twin Pump Floor Standing - Compact, totally enclosed combined digital pressurisation unit with vacuum degasser and additive tank for use on sealed systems in order to provide a minimum system pressure requirement and effective dissolved gas removal and adding additive to system.

The correct fluid mix is blended on demand at the time of system top-up. The PressDS Plus (Pressurisation/Degassing/Dosing System) is a compact, totally enclosed combined digital pressurisation unit with vacuum degasser and additive tank for use on sealed systems in order to provide a minimum system pressure requirement, effective dissolved gas removal and adding additives to the system. The correct fluid mix is blended on demand at the time of system top-up. System Volume (Guide): < 300,000 litres, designed for commercial use.

Product Features

• For system volumes up to 300,000 litres.
• Fluid Protection Category 5 (AB Weir Overflow).
• Onscreen Service Reminder - 12 Months. Onscreen message when additive tank is empty.
• Individual controllers for pressurisation and degassing function.
• Vacuum degassing, turbo and normal interval modes.
• 18 litre additive tank.
• Mix ratios from 1% to 50% user configurable balancing valves.
• Top-up pressurisation unit (<18.0 l/min).
• Electric pump, 230V 50Hz 1ph (2160D: 415V 50Hz 3ph).
• Colour: Black (RAL 9005).
• MODBUS RTU Communication Protocol.
• System fill mode.
• Password protected.
• Pressure setting in 0.1 bar increments.
• Sequential programming menu.
• Pump pulse option.
• Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
• Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical
  interuption.
• Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1
  Health (N/O), Pump 2 Health (N/O).
• Optional Additional Volt Free Contacts: Low Pressure Warning (N/O), High Pressure Warning (N/O), Low Water In Break Tank
  (N/O), Low Additive In Holding Tank (N/O), Pump 1 Run For Topup (N/O), Pump 2 Run For Topup (N/O).
