Flamco PressDS 250D Pressurisation Unit & Dosing System

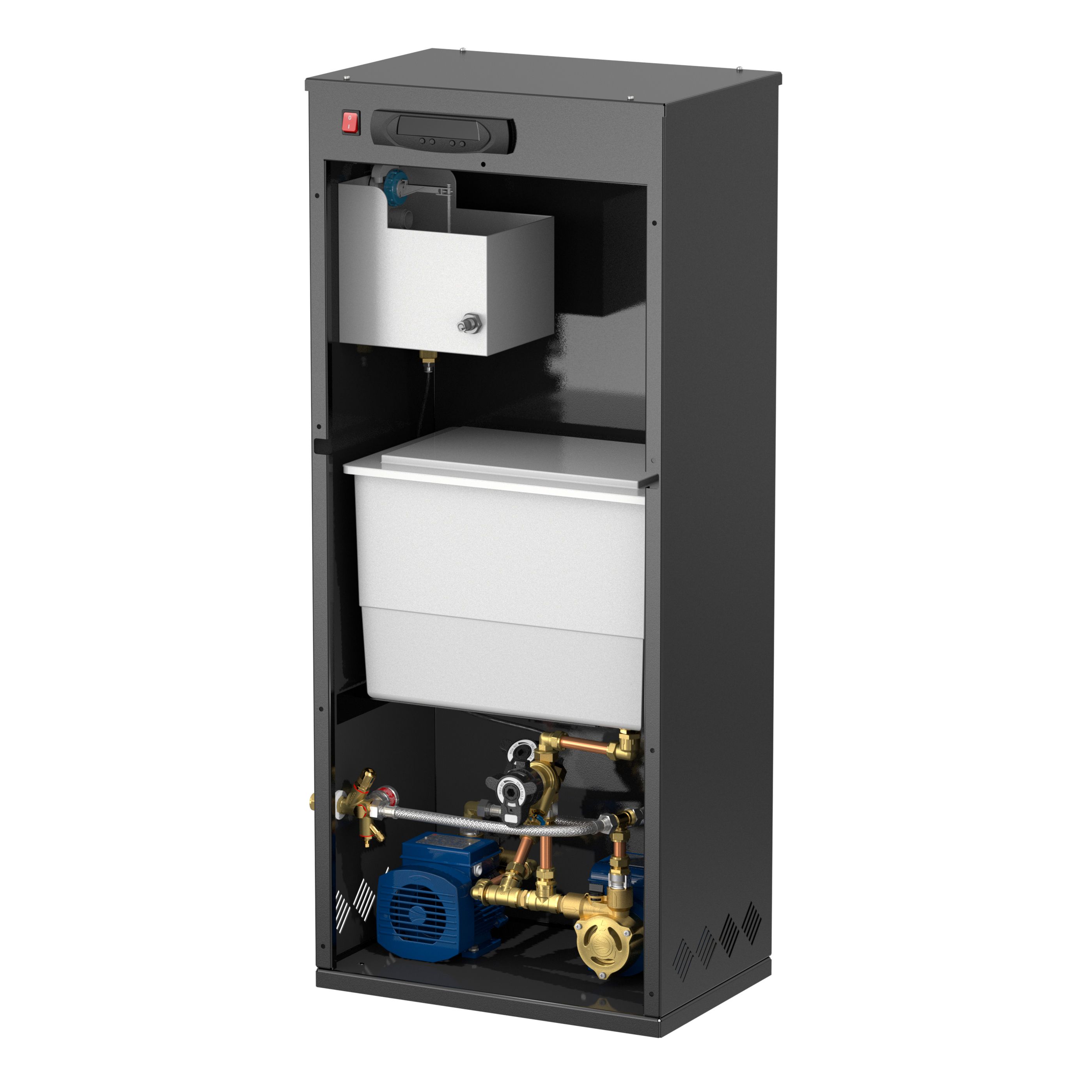

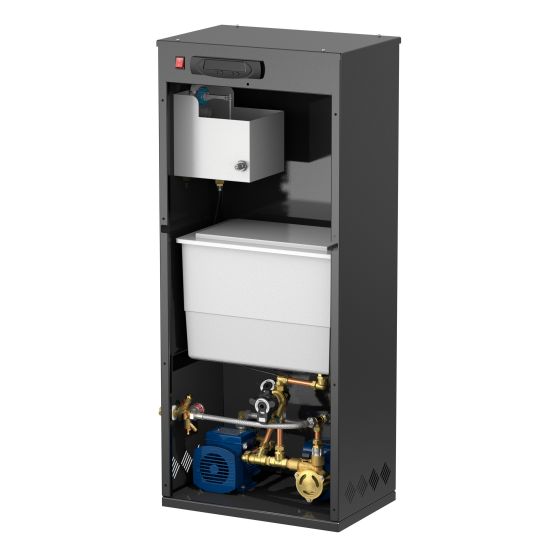

A compact, totally enclosed digital pressurisation unit with electronic pressure transducer and user-friendly microprocessor for use on sealed systems in order to provide a minimum system pressure requirement. The correct fluid mix is blended on demand at the time of system top-up.
System Volume (Guide): < 60000 Litres
Product Features:
- MODBUS communication output
- System fill mode
- Password protection for parameter entry
- Pressure settings in 0.1 bar increments
- Service reminder option (12 months).
- Pump pulse option (2 second pulse if inactive for 60 days)
- Flood protection options
- Event logging for pump start, individual pump run hours counter, electrical interruption and common alarm.
- Volt free contacts for common fault, high pressure, low pressure, pump fault, pressure transducer fault.
- 4 Litre water break tank with type AB Air Gap Fluid Cat 5
- 18 litre additive tank
- Mix ratios from 1% to 50% user configurable balancing valves
- Top-up pressurisation unit (<10.0 l/min)
| Description | Flamco PressDS 250D |
| Pump quantity | 2 |
| Max. Delivery Pressure [bar] | 6 |
| Power Consumption [kW] | 2 x 0.5 |
| Full Load Current [A] | 3.5 |
| Nom. Weight [kg] | 39 |
| Connections | |
| System [mm] | 15mm |
| Mains Supply [mm] | 15mm |
| Overflow [mm] | 22mm |
| KIWA Approval | No |
|---|---|
| Product Type | Pressurisation Units |
| Custom Shipping | 0.000000 |
| Manufacturer | Flamco UK |
| Model Range | PressDS |

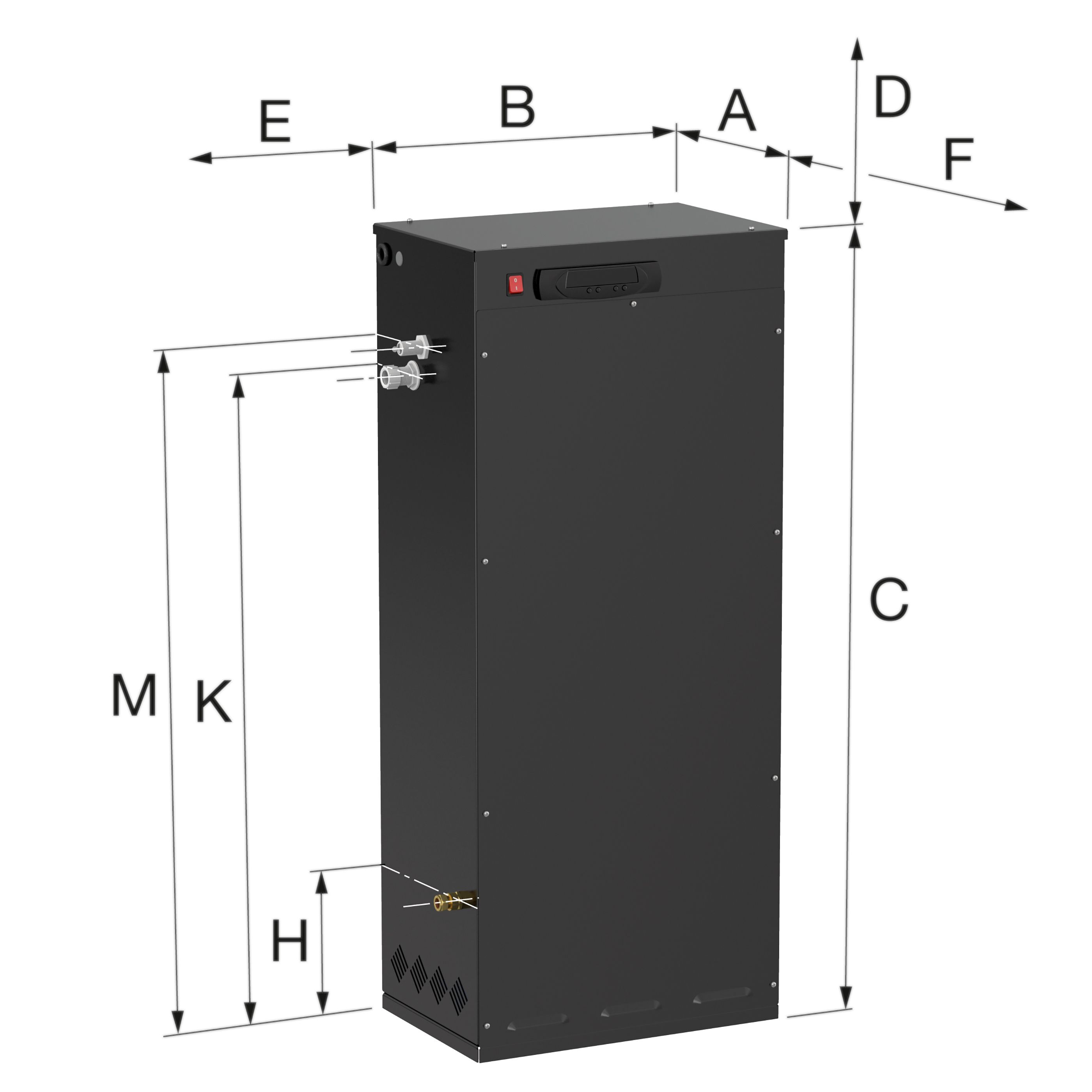

| Dimensions | 320 (A) x 480 (B) x 1180 (C) x 500 (D) x 150 (E) x 800 (F) x 230 (H) x 930 (K) x 1030mm (M) |
| Kw Rating | 2 x 0.5 kW |
| Product Code | 45047 |
| Connection Type | 1/2" |
| System Type | Heating |
| Pump Quantity | 2 Pump |
