Flamco Flexfiller Mini 130D Pressurisation Unit - Single Pump

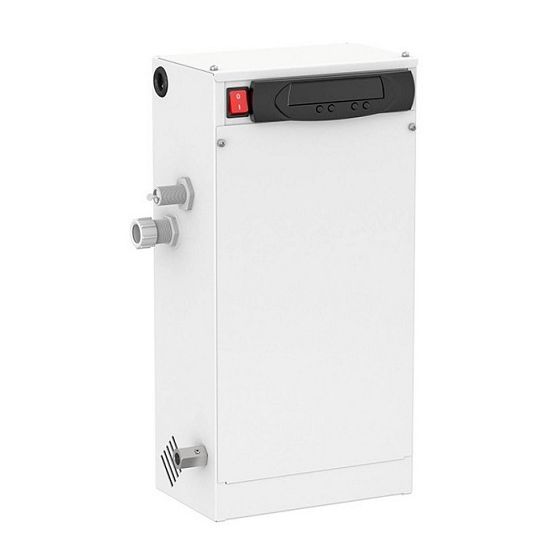

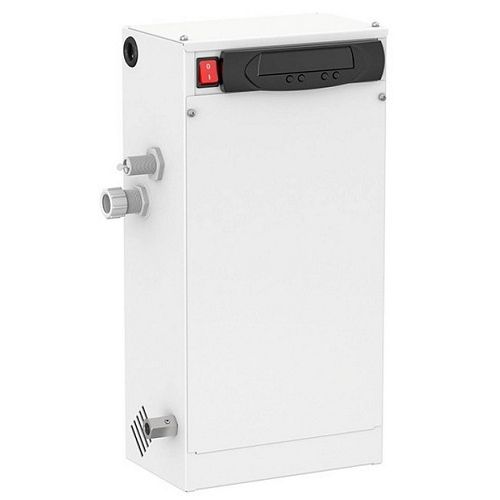

Flamco Flexfiller Mini 130D Single Pump Wall Mounted Pressurisation Unit

Compact and totally enclosed digital pressurisation units with electronic pressure transducer and user-friendly microprocessor for use on sealed system in order to provide a minimum system pressure requirement.


The Flexfiller Mini Digital is a slim wall mounted, low flow rate (0.4 l/min) top-up pressurisation unit with 2 litre internal break tank. Ideal for small commercial or large domestic applications. For use on heating systems utilising a 300 litre expansion vessel or less, or chilled systems utilising a 50 litre expansion vessel or less. Available in single or twin pump configuration.


Operating Conditions

• System temperature range at point of connection: 5 ºC / 85 ºC.
• Ambient temperature range: 5 ºC / 40 ºC.
• Pressure rating: PN 10.
• Relative humidity 95% non-condensing.
• Noise Rating Data: < 75 dBA.

Features

• For system volumes up to 2,600 litres.
• Fluid Protection Category 5 (AB Weir Overflow).
• Onscreen Service Reminder - 12 Months.
• Electric pump, 230V 50Hz 1ph.
• Colour: White (RAL 9003).
• MODBUS RTU Communication Protocol.
• Password protected.
• Sequential programming menu.
• Pressure setting in 0.1 bar increments.
• Pump pulse option.
• Flood Protection (Pump Runtime Limiter, Excessive Start Alarm).
• Event logging: Alarm activations, Pump Run counter (activations per pump), Cumulative run timer (hours per pump), Electrical interuption.
• Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O).
