Flamco Flexfiller Midi 125D Single Pump Pressurisation Unit

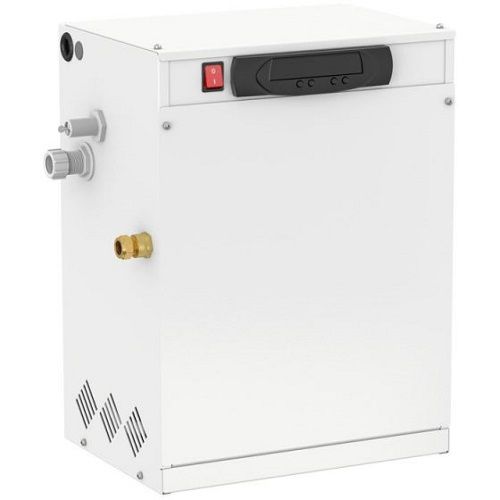

Flamco Flexfiller Midi 125D Single Pump Wall Mounted Digital Pressurisation Unit

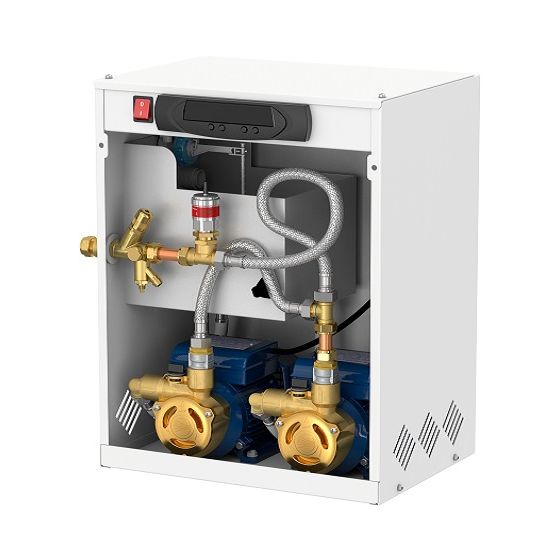

A compact, fully-integrated wall mounted pressurisation unit topping-up and filling unit, utilising micro-processor control and with electronic pressure transducer. For use on sealed heating and cooling systems, offering accurate control and reliability. The Flexfiller Midi 125D has a top-up flow rate (up to 12 l/min) with 4 litre internal break tank. Ideal for Industrial, commercial or large domestic applications. Available in single or twin pump configuration. The Flexfiller pressurisation unit should be connected to the system at the same point as the expansion vessel to provide a neutral pressure reading.


Features

• For system volumes up to 50,000 litres.
• System quick-fill mode
• Password protection for parameter entry
• Pressure settings in 0.1 bar increments
• Service reminder option (12 months)
• Pump pulse option
• Flood protection options (Pump Runtime Limiter, Excessive Start Alarm)
• Event logging for pump start, individual pump run hours counter, electrical interruption and common alarm
• Volt free contacts: Common Alarm (N/C), High Pressure Alarm (N/O), Low Pressure Alarm (N/O), Sensor Health (N/O), Pump 1 Health (N/O), Pump 2 Health (N/O)


Digital pressurisation equipment including:

• Digital equipment comes with bright LED display scrolling messages including pump operation and alarm modes
• Complete with integral water break tank utilising an AB airgap and a WRAS-approved float valve
• Internal alarm with mute function
• Security password protected
• Auto resetting low water detection, for pump protection
• Auto resetting high and low pressure alarm
• Digital pressure setpoint with adjustable differential
• Flood protection through a pump run limit timer
• Normally closed, common fault, volt-free contact (Boiler interlock)
• Normally open, individual volt-free contacts for pump trip, high pressure, low pressure, and sensor health
• All volt-free contacts are for use with electrical supplies up to 240v with a maximum current draw of 5 amps
• RS 485 Connectivity
• Hours run counter (per pump)
• Excessive start alarm (>3 times in 8 hours)
• Fill system option (Not available on 130D/230D)
