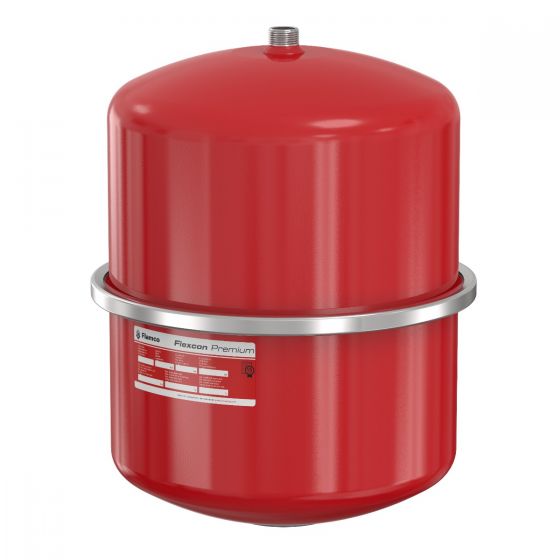

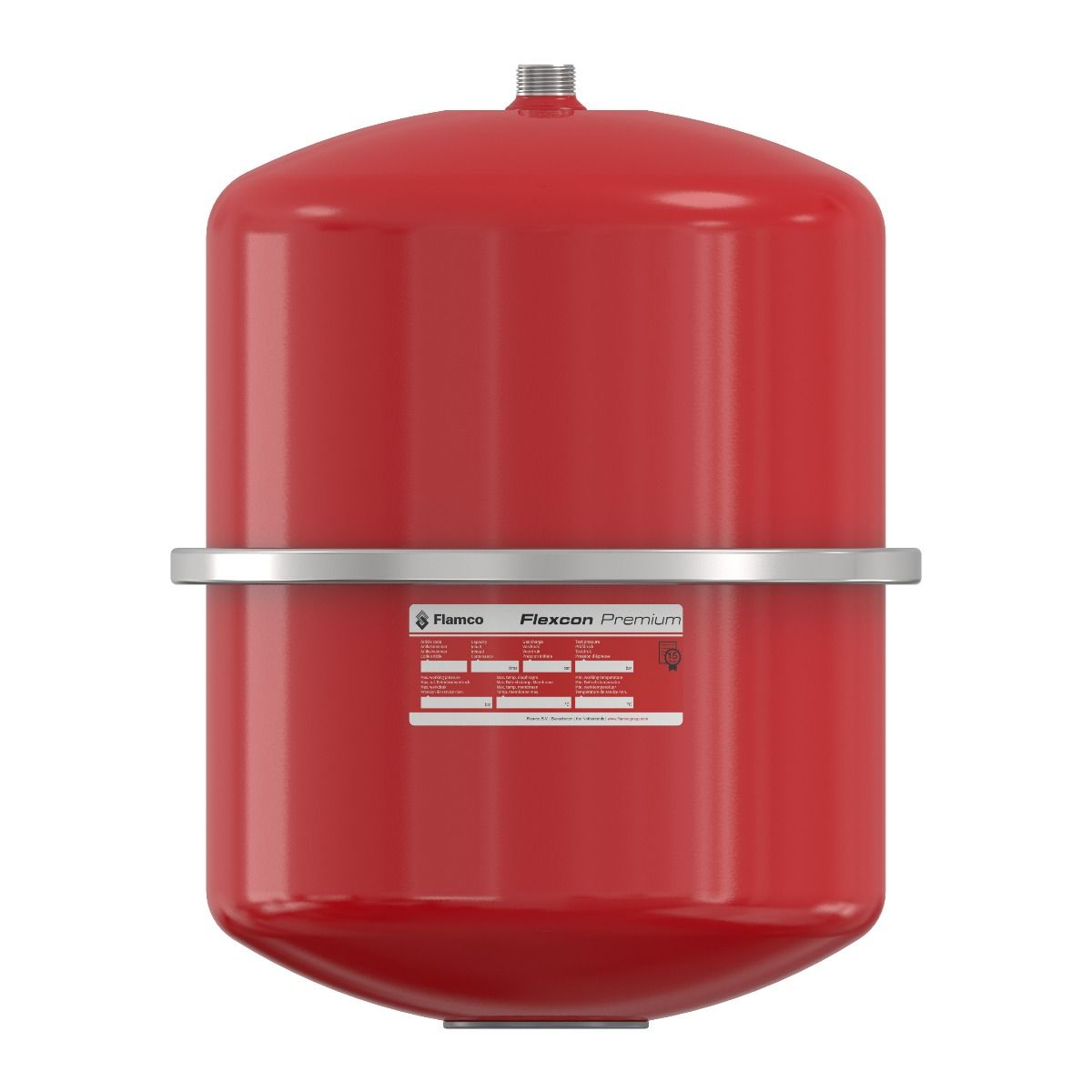

Flamco Flexcon Premium 25 Litre Heating Expansion Vessel 6 bar (g) expansion vessels are suitable for use in central heating, cooling and solar installations.
For use under high pressure. Top-quality high strength steel, with a gleaming red (RAL 3002) epoxy powder coating – perfect protection and finish. Clamp ring of heavy-duty thermally-galvanised steel. Our flexible butyl diaphragms with rolling action are suitable for use with glycol based anti-freeze addition up to 50%. Exact details are available on request. The nitrogen airvalve is sunk and cannot be damaged due to the cap and extra protective plastic beige coverplate. Uncoated threaded system connection, ensuring problem free connecting.
Specifications
- Flamco Flexcon Premium 25
- Volume: 25 litres
- Dimensions: 328mm diameter x 421mm height
- Connection Size: 3/4" M BSP
- Weight: 5.8 kg
- Pre Charge Pressure: 0.5 bar
- Maximum working pressure: 6.0 bar.
- Vessels in accordance with EN13831.
- Suitable for systems with a maximum system temperature of 120 °C.
- Maximum temperature diaphragm: -10 / 90 °C.
- Suitable for addition of glycol-based anti-freeze up to 50%.
- In accordance with Pressure Equipment Directive 2014/68/EU.
- Red (RAL 3002) epoxy powder coating.
| Product Type | Expansion Vessels |
|---|---|
| Custom Shipping | 35.000000 |
| Manufacturer | Flamco UK |
| Model Range | Flexcon Premium |
| Warranty | 15 Year Warranty |
| Dimensions | Diameter [mm] 328 - Height [mm] 421 |
| Volume / Capacity | 25 Litre |
| Product Code | 16950 |
| Material | Diaphgram TPO |
| Connection Type | 3/4" |
| Orientation | Vertical |
| System Type | Heating |
| Vessel Pre-Charge Pressure | 0.5 bar |
| Max Pressure | 6 bar |
| Max Temperature | 90°C |
