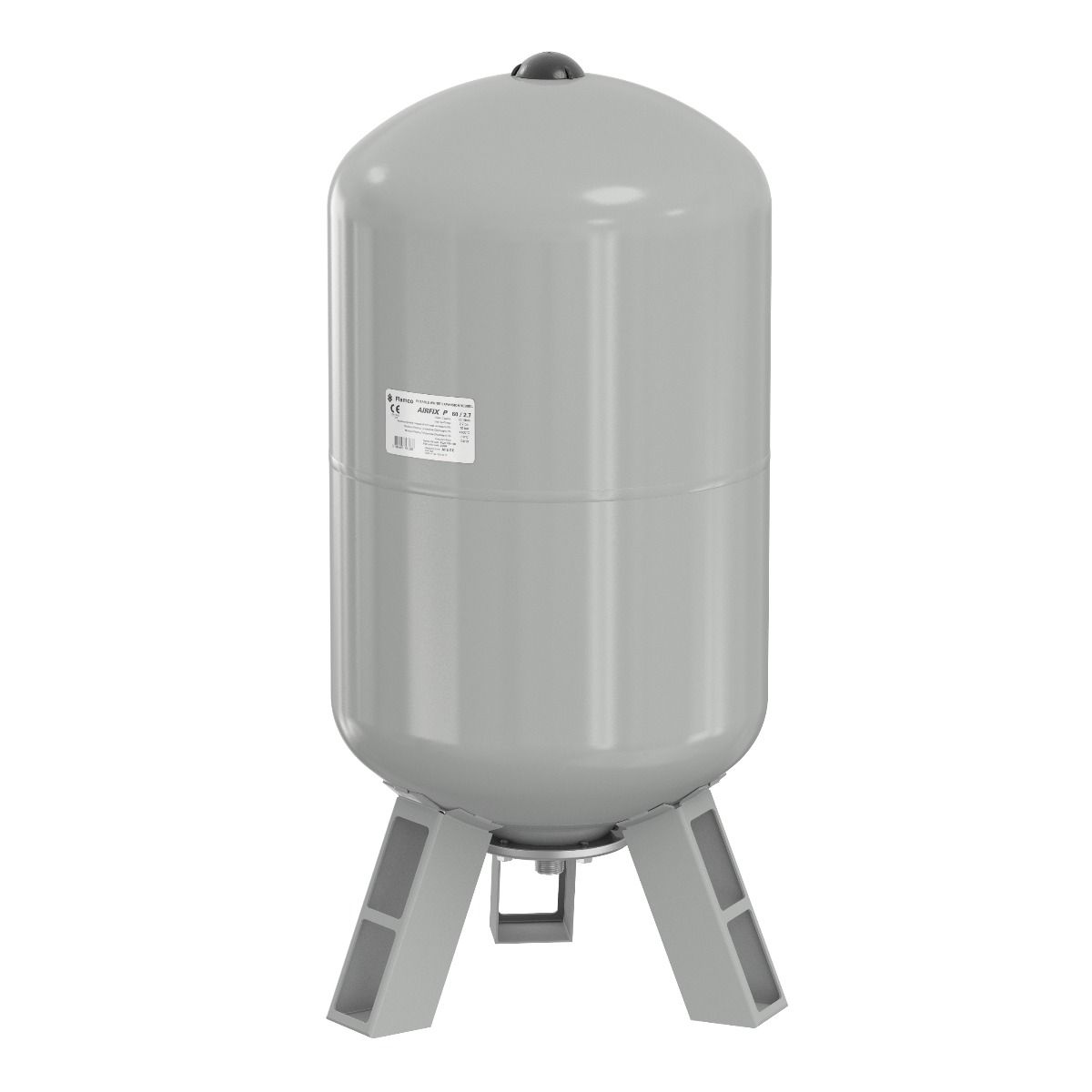

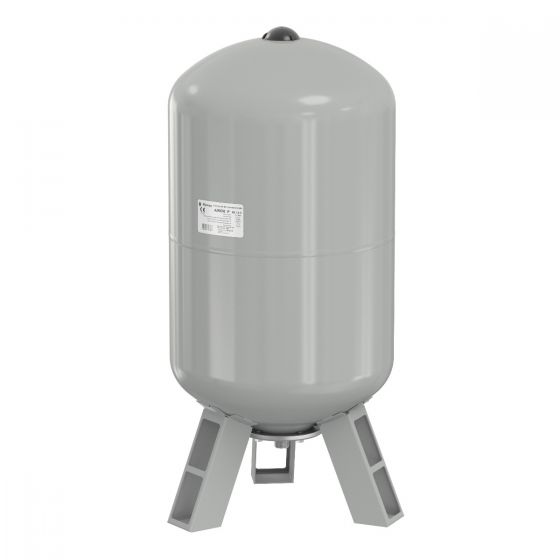

Flamco Airfix P Potable 750 Litre Expansion Vessel
Airfix P expansion vessels for pressurised systems are suitable for domestic, process or extinguishing systems which need oxygen rich water. Potable water expansion vessels for use in domestic and commercial sealed chilled and hot water systems. The vessels are designed to incorporate a unique contoured, interchangeable diaphragm. They are available with a capacity of 2 - 5,000 litres.
Specifications
- Flamco Airfix P 750
- Volume: 750 litres
- Dimensions: 800mm diameter x 1820mm height
- Connection size: 2" M BSP
- Pre charge pressure: 2.7 bar
- Maximum working pressure: 8 bar.
- Min./ max. working temperature (bladder): -10 / 100 °C.
- In accordance with Pressure Equipment Directive 2014/68/EU.
- Colour: Coated aluminium (RAL 9006).
| Product Type | Expansion Vessels |
|---|---|
| Manufacturer | Flamco UK |
| Model Range | Airfix |
| Warranty | 2 Year Warranty |
| Dimensions | 800 x 1820mm (Dia x H) |
| Volume / Capacity | 750 Litre |
| Product Code | 24928 |
| Material | Bladder: EPDM |
| Connection Type | 2" |
| Orientation | Vertical |
| Positioning | Floor standing |
| System Type | Potable (Drinking) |
| Vessel Pre-Charge Pressure | 2.7 bar |
