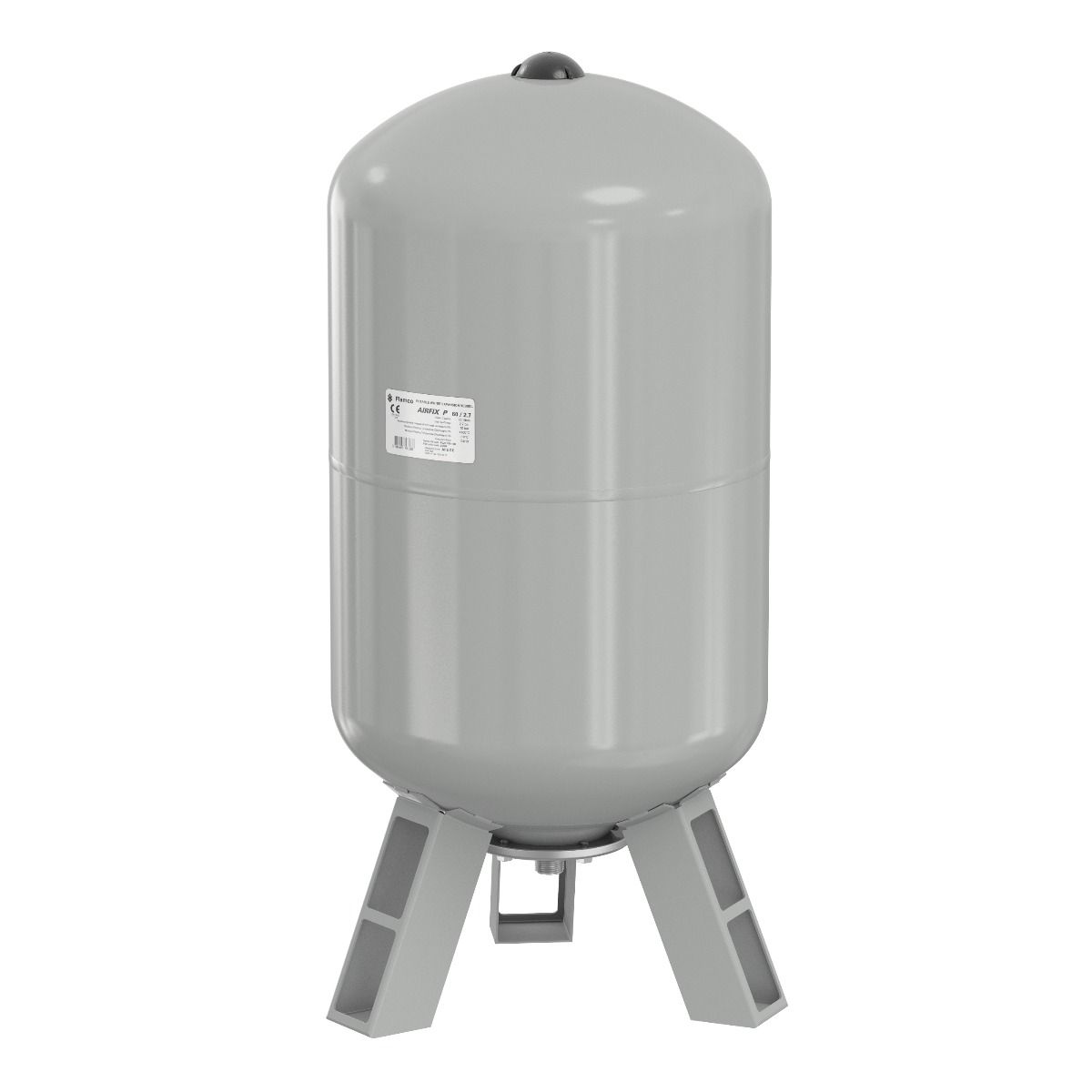

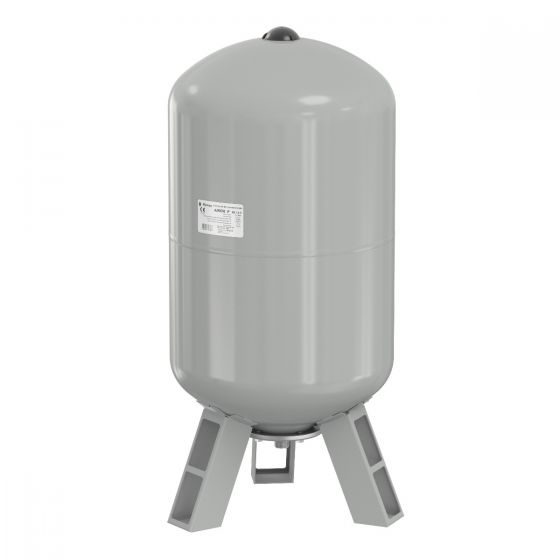

Flamco Airfix P 50 Litre Potable Expansion Vessel

Flamco Airfix P Potable 50 Litre Expansion Vessel

Flamco Airfix P expansion vessels for pressurised systems are suitable for domestic, process or extinguishing systems which need oxygen-rich water. Potable water expansion vessels for use in domestic and commercial sealed chilled and hot water systems. The vessels are designed to incorporate a unique contoured, interchangeable diaphragm. They are available with a capacity of 2 - 5,000 litres.

• Nitrogen gas filling for longer retention of pre-charge.
• With single-threaded steel connection and plastic insert (no flow-through function).

Specifications

• Flamco Airfix P 50
• Volume: 50 litres
• Dimension: 380mm diameter x 720mm height
• Connection: 1" M BSP
• Maximum working pressure: 10.0 bar.
• Pre Charge Pressure: 2.7 bar
• Min./ max. working temperature (bladder): -10 / 100 °C.
• Suitable for the addition of glycol-based anti-freeze up to 50%.
• In accordance with Pressure Equipment Directive 2014/68/EU.
• Colour: Coated aluminium (RAL 9006).
• Airfix P 50 comes with feet.
