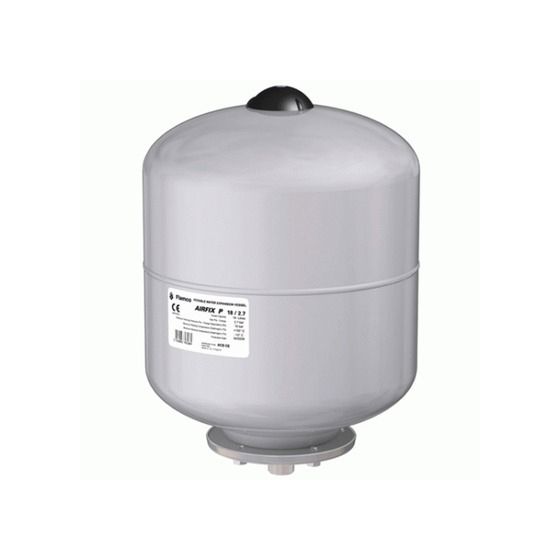

Flamco Airfix P Potable 18 Litre Expansion Vessel
Flamco Airfix P expansion vessels for pressurised systems are suitable for domestic, process or extinguishing systems which need oxygen rich water. Potable water expansion vessels for use in domestic and commercial sealed chilled and hot water systems. The vessels are designed to incorporate a unique contoured, interchangeable diaphragm. They are available with a capacity of 2 - 5,000 litres.
Â
- Nitrogen gas filling for longer retention of pre-charge.
- With single threaded steel connection and plastic insert (no flow through function).
Â
Specifications
- Flamco Airfix P 18
- Volume: 18 litres
- Dimensions: 260mm diameter x 375mm height
- Connection: 3/4" M BSP
- Maximum working pressure: 10.0 bar.
- Pre Charge Pressure: 2.7 bar
- Min./ max. working temperature (bladder): -10 / 100 °C.
- Suitable for addition of glycol-based anti-freeze up to 50%.
- In accordance with Pressure Equipment Directive 2014/68/EU.
- Colour: Coated aluminium (RAL 9006).
Product Type | Expansion Vessels |
---|---|
Custom Shipping | 35.000000 |
Manufacturer | Flamco UK |
Model Range | Airfix |
Warranty | 2 Year Warranty |
Dimensions | 260 x 375mm (Dia x H) |
Volume / Capacity | 18 Litre |
Product Code | 24906 |
Material | Bladder: EPDM |
Connection Type | 3/4" |
Orientation | Vertical |
System Type | Potable (Drinking) |
Vessel Pre-Charge Pressure | 2.7 bar |
