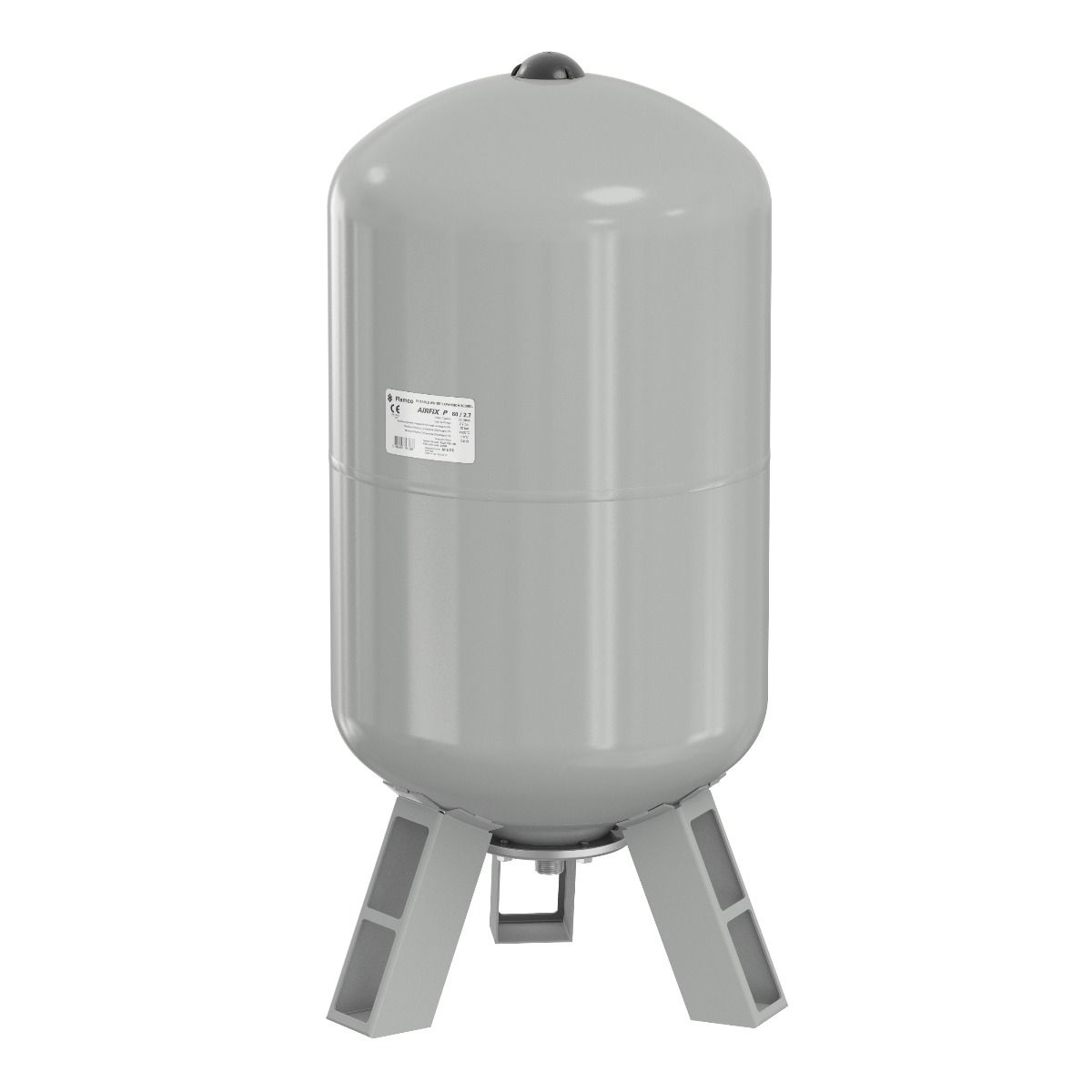

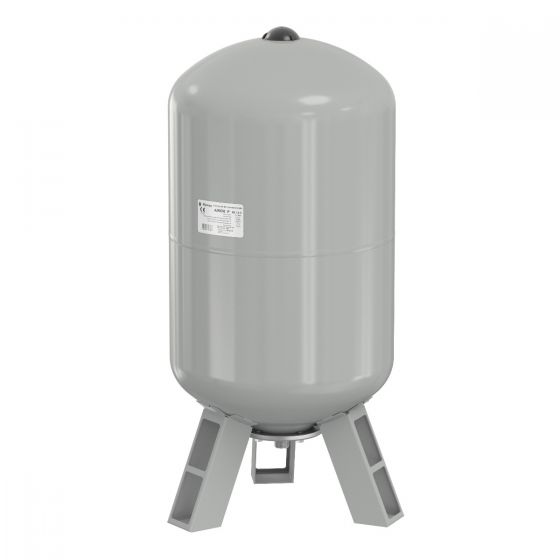

Flamco Airfix P Potable 150 Litre Expansion Vessel
Airfix P expansion vessels for pressurised systems are suitable for domestic, process or extinguishing systems which need oxygen-rich water. Potable water expansion vessels for use in domestic and commercial sealed chilled and hot water systems. The vessels are designed to incorporate a unique contoured, interchangeable diaphragm. They are available with a capacity of 2 - 5,000 litres.
- Nitrogen gas filling for longer retention of pre-charge.
- With single-threaded steel connection and plastic insert (no flow-through function).
Specifications
- Flamco Airfix P 150
- Volume: 150 litres
- Dimensions: 510mm diameter x 1030mm height
- Connection size: 1" M BSP
- Pre Charge Pressure: 2.7
- Maximum working pressure: 10.0 bar.
- Min./ max. working temperature (bladder): -10 / 100 °C.
- Suitable for addition of glycol-based anti-freeze up to 50%.
- In accordance with Pressure Equipment Directive 2014/68/EU.
- Colour: Coated aluminium (RAL 9006).
- Airfix P 150 complete with feet.
| Product Type | Expansion Vessels |
|---|---|
| Custom Shipping | 75.000000 |
| Manufacturer | Flamco UK |
| Model Range | Airfix |
| Warranty | 2 Year Warranty |
| Dimensions | 510 x 1030mm (Dia x H) |
| Volume / Capacity | 150 Litre |
| Product Code | 24920 |
| Material | Bladder: EPDM |
| Connection Type | 1" |
| Orientation | Vertical |
| Positioning | Floor standing |
| System Type | Potable (Drinking) |
| Vessel Pre-Charge Pressure | 2.7 bar |
