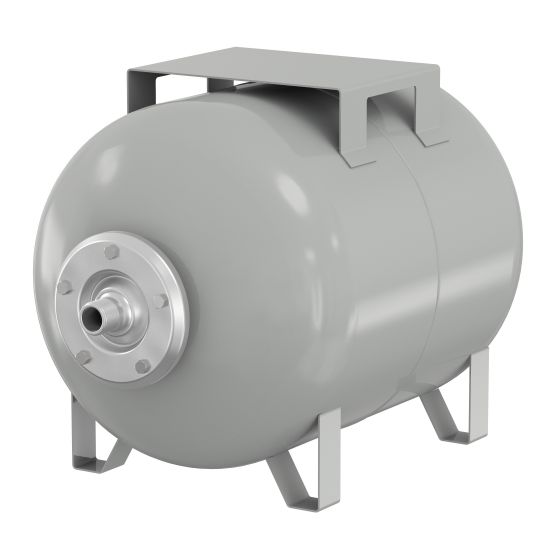

Flamco Horizontal Potable 100 Litre Expansion Vessel
Flamco Airfix P expansion vessels for pressurised systems are suitable for domestic, process or extinguishing systems which need oxygen rich water. Potable water expansion vessels for use in domestic and commercial sealed chilled and hot water systems. The vessels are designed to incorporate a unique contoured, interchangeable diaphragm. They are available with a capacity of 2 - 5,000 litres.
- Nitrogen gas filling for longer retention of pre-charge.
- Designed to incorporate a unique contoured, replaceable bladder.
- With single threaded steel connection and plastic insert (no flow through function).
Specifications
- Flamco Airfix P 100 H
- Volume: 100 litres
- Dimensions: 460mm diameter x 485mm height x 780mm length
- Connection size: 1" M BSP
- Pre Charge Pressure: 2.7 bar
- Maximum working pressure: 10.0 bar.
- Min./ max. working temperature (bladder): -10 / 100 °C.
- Suitable for addition of glycol-based anti-freeze up to 50%.
- In accordance with Pressure Equipment Directive 2014/68/EU.
- Colour: Coated aluminium (RAL 9006).
| Product Type | Expansion Vessels |
|---|---|
| Custom Shipping | 75.000000 |
| Manufacturer | Flamco UK |
| Model Range | Airfix |
| Warranty | 2 Year Warranty |
| Dimensions | 460 x 485 x 780mm (Dia x H x L) |
| Volume / Capacity | 100 Litre |
| Product Code | 24919 |
| Material | Bladder: EPDM |
| Connection Type | 1" |
| Orientation | Horizontal |
| Positioning | Floor standing |
| System Type | Potable (Drinking) |
| Vessel Pre-Charge Pressure | 2.7 bar |
