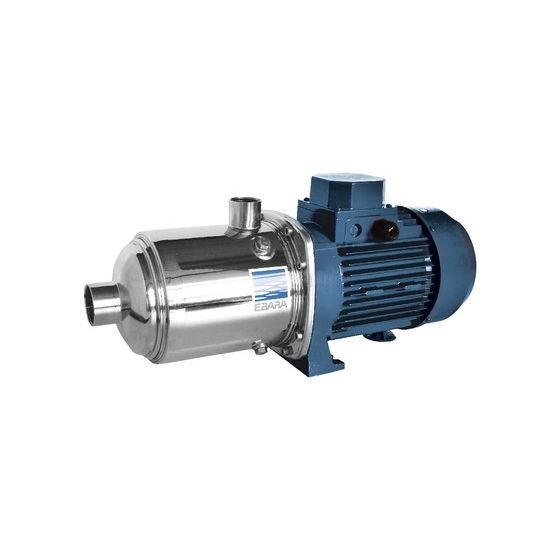

Ebara Matrix/I 10-5T/2.2 Horizontal Multistage Pump (3 Phase)

Ebara Matrix/I 10-5T/2.2 Horizontal Multistage Pumps (Three Phase)

Applications

• Industrial washing
• Pressure boosting units
• Industrial plants
• Distribution and treatment of water
• Heating and air conditioning
• Cooling and chiller
• Irrigation
• Recovery of rain water

Technical Details

• Strong and compact construction
• Available in various versions and models
• WRAS approval for the standard version (up to +85°C)

Pump Technical Data

Temperature of the liquid:

from -15°C to +85°C (standard)

from -15°C to +110C ( for TE version for high temperature)

• Maximum working pressure: 10 bar
• Maximum chlorine content: 500 ppm
• G1 suction connection for MATRIX 3, G1frac14; for MATRIX 5,

G1½ for MATRIX 10, G2 for MATRIX 18

• G1 discharge connection for MATRIX 3-5, G1frac14; for MATRIX 10,

G1½ for MATRIX 18

Motor Technical Data

• High efficiency motors IE2 starting from 0,75kW
• Self-ventilated 2 poles asynchronous motor
• Class of insulation F
• IP55 Protection degree
• 230V ±10%, 50Hz single phase voltage

230/400V±10%, 50Hz three phase voltage

• Permanent capacitor inserted and thermo-amperometric protection with automatic rearm incorporated for the single phase motor
• Protection under user's responsibility for the three phase version

Materials

• Pump casing, impellers, intermediate stages, seal housing disc and shaft

(part in contact with the liquid) in EN 1.4301 (AISI 304)

• Mechanical seal in Carbon/Ceramic/EPDM
• Bracket in EN AB-AISI11Cu2(Fe) (microcasted aluminium)
• Pump casing, impellers, intermediate stages, seal housing disc and shaft (part in contact with the liquid) in AISI 304
• Mechanical sealing in Carbon/Ceramic/EPDM
• Support and motor casing in aluminium
