Ebara E-SPD+ T11000 11kW Air Cooled Pump Inverter

Ebara E-SPD+ TT11000 11kW Air Cooled Pump Inverter

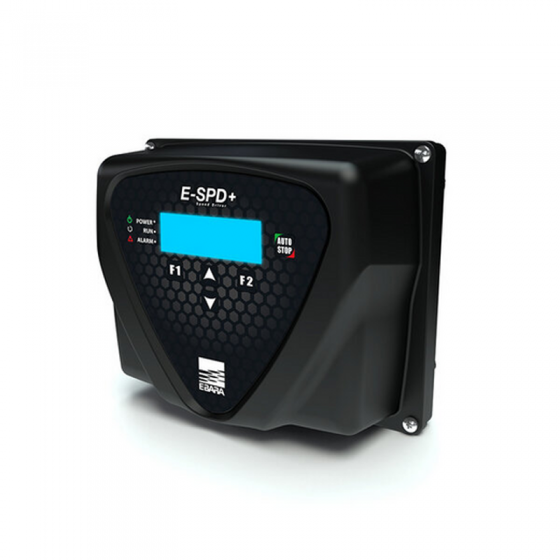

The E-SPD+ by Ebara is a new generation inverter that features air cooling, the E-SPD+ can be installed on the pump motor terminal board. The Ebara E-SPD+ has been introduced and designed to better meet requirements of energy saving, pressure variations, reduction of operating cost and acoustic comfort. The Ebara E-SPD+ 11000 TT is for installation on 400V three-phase pumps with up to 11kW nominal power.

The versatility of the E-SPD+ design, enables it to be installed on Ebara pump motors from MEC 71 up to MEC 132. The E-SPD+ is highly flexible, enabling it to be used with centrifugal pumps, both horizontal and vertical, and courtesy of the wall installation kit (optional), the E-SPD+ can also be combined with submerged pumps. The units feature an innovative LCD display for viewing and changing operating parameters and for keeping track of the history of the key parameters, faults and alarms. Its cover can be rotated 180° for easier reading.

The E-SPD+ has system protection against overcurrents, input voltage fluctuations, dry running and losses in the system. The units are easy to install and program thanks to the highly-intuitive and user-friendly software. Connectivity to the E-SPD+ is provided by 4 configurable digital inputs, 2 configurable digital outputs, 2 analogue 4-20 mA inputs, 1 0-10v input, and 1 input for PTC.

Ebara E-SPD+ Features:

• Suitable for use with Horizontal and Vertical Ebara centrifugal pumps
• Mountable on motors from MEC 71 up to MEC 132
• Has parallel operation of up to 8 pumps
• Features two RS485 ports for communication
• High Efficiency
• Compact Dimensions
• Practical and Easy to use
• Innovative LCD display for viewing and changing operating parameters
