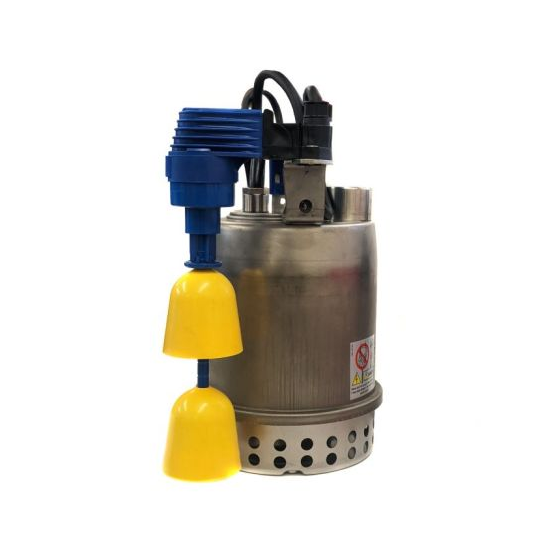

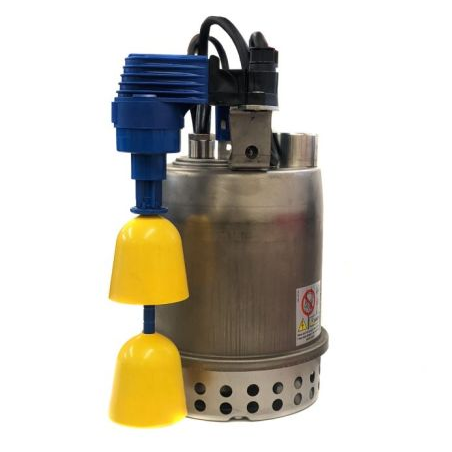

Ebara BEST ONE WVBPNENX (Single Phase) Submersible Drainage Pump with Magnetic Cup Float Switch
The Ebara BEST ONE WVBP-NENX (AGMA) is a single phase submersible drainage pump for clean water with AISI 304 stainless steel hydraulics, 0.25kW motor and magnetic float switch - similar to the BEST ONE MS. The Ebara BEST ONE is the market leading domestic and light commercial submersible drainage pump. Ideal for pumping cellars, dewatering ground and pumping floodwater. Standard versions can pump solids with a maximum diameter of 10mm. The Ebara Best One WVBP-NENX sump pump is specifically designed for compact sumps.
Compact vertical float switch: Unlike traditional cable floats that require more space, the WVBP-NENX uses a vertical float switch. This space-saving design makes it perfect for tight sumps.
Clog-resistant design: The vertical float switch has an open design that minimises the risk of clogging caused by larger particles in water. This ensures reliable operation even in challenging environments.
Other versions are available with and without an integral float switch - 'M' versions are without, 'MS' versions have a magnetic float switch and 'MA' versions have a standard float switch for automatic operation. (Vortex impeller versions can pump solids up to 20mm in diameter. Vortex impeller versions have the designation 'VOX').
Specification
- Electrical Supply Phase - Single Phase
- Min Voltage In (V) - 220
- Max Voltage In (V) - 240
- kW Rating - 0.25
- Max Flow (litres/second) - 2.8
- Variable Speed - No
- Max Head (m) - 8.3
- Outlet Connection Type - Threaded
- Outlet Size - 1 1/4"
Delivery Estimate | In stock |
---|---|
KIWA Approval | No |
Product Type | Submersible Drainage/Sump Pumps |
Custom Shipping | 0.000000 |
Manufacturer | EBARA pumps |
Model Range | Best One |
Warranty | 2 Year Warranty |
Power Supply | 220V-240V Single Phase |
Kw Rating | 0.25 |
Product Code | 7121000015 |
Connection Type | 1 1/4" |
