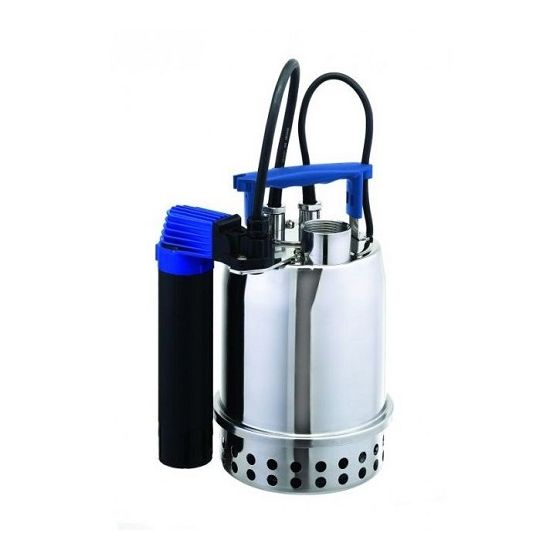

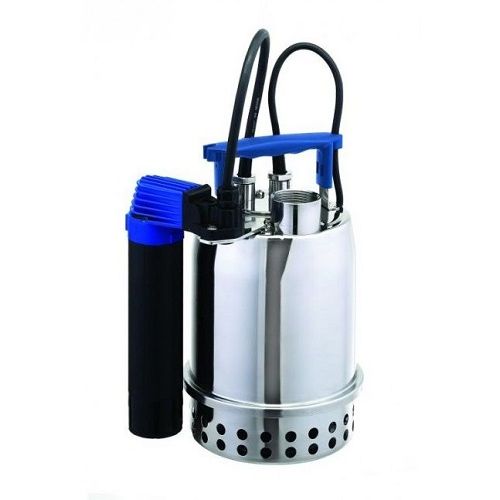

Ebara BEST ONE MS Submersible Drainage Pump with Magnetic Float (1 Phase)

Ebara BEST ONE MS (Single Phase) Submersible Drainage Pump with Magnetic Float Switch

The Ebara BEST ONE MS is a single phase submersible drainage pump for clean water with AISI 304 stainless steel hydraulics, 0.25kW motor and magnetic float switch. The Ebara BEST ONE is the market leading domestic and light commercial submersible drainage pump. Ideal for pumping cellars, dewatering ground and pumping floodwater. Standard versions can pump solids with a maximum diameter of 10mm.

Versions are available with and without an integral float switch - 'M' versions are without, 'MS' versions have a magnetic float switch and 'MA' versions have a standard float switch for automatic operation. (Vortex impeller versions can pump solids up to 20mm in diameter. Vortex impeller versions have the designation 'VOX').

Installation

The BEST ONE electric pumps have a wide versatility of installation. The possibility of choosing between the vertical magnetic float (small) or the float switch allows choosing of the best option also based on the space available to insert the pump. The choice of switch type also depends on the water level for which pump start is preferred.

Specification

• Electrical Supply Phase - Single Phase
• Min Voltage In (V) - 220
• Max Voltage In (V) - 240
• kW Rating - 0.25
• Max Flow (litres/second) - 2.8
• Variable Speed - No
• Max Head (m) - 8.3
• Outlet Connection Type - Threaded
• Outlet Size - 1 1/4"
