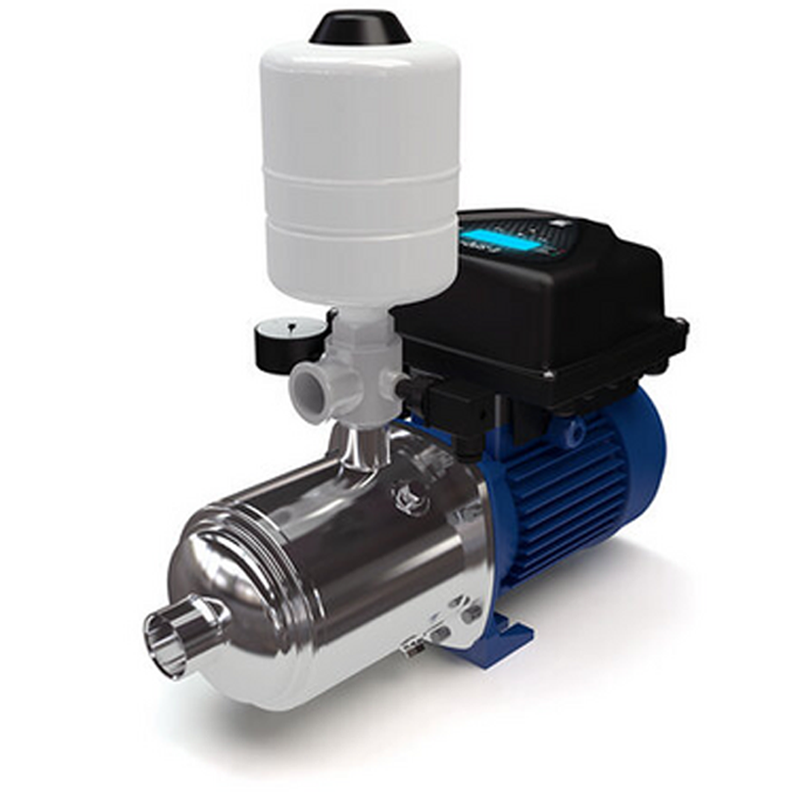

EBARA 1GPE MATRIX 5-9T/2.2 ESPM Single Pump Booster Set
EBARA 1GPE MATRIX is a variable speed single pump booster set designed to increase water pressure and transfer. It employs cutting-edge technology to deliver water at the appropriate pressure and flow for residential and commercial applications. Suitable for clean, abrasive-free liquids. Water supply pump for domestic, civil, and garden use, as well as irrigation. As standard, the unit includes a multi-stage stainless steel electric pump in AISI 304 stainless steel including the E-SPD+ variable speed electronic inverter, 1 AISI 304 stainless steel five-way connector (on the delivery side), 1 analogue pressure gauge, 1 pressure transducer (4-20mA), and an 8 litre expansion vessel. Inlet connection 1 1/4" and Outlet connection 1" BSP(F)
Features
- Variable speed control allowing smooth pressure control and a low noise performance
- Constant Pressure
- Compact Design
- WRAS Approved for use on drinking water applications
- Prefabricated and ready to install
Technical Data
- Power Supply: 230V/1Ph
- Kw Rating: 2.2Kw
- IP Rating: IP55
- Suction Connection: G1 1/4" F PN10
- Discharge Connection: G1" F PN10
- Max Working Pressure: 10 Bar
- Max Flow: 7.8m3/h
Delivery Estimate | 5 - 7 working days |
---|---|
Product Type | Booster Set |
Booster Type | Single Pump |
Custom Shipping | 0.000000 |
Manufacturer | EBARA pumps |
Model Range | 1GPE |
Warranty | 1 Year Warranty |
Dimensions | 552mm x 243mm x 461mm (L x W x H) |
Power Supply | 220V-240V Single Phase |
Kw Rating | 2.2 |
Max Flow | 7.8 m3/h |
Max Head | 39.6 m |
Product Code | EBARA 1GPE MATRIX 5-9T/2.2 ESPM |
Material | Stainless Steel AISI304 |
Outlet Connection | 1'' Threaded |
Inlet Connection | 1 1/4" Threaded |
Orientation | Horizontal |
Variable Speed | Yes |
Max Pressure | 10 bar |
Pump Quantity | 1 Pump |
