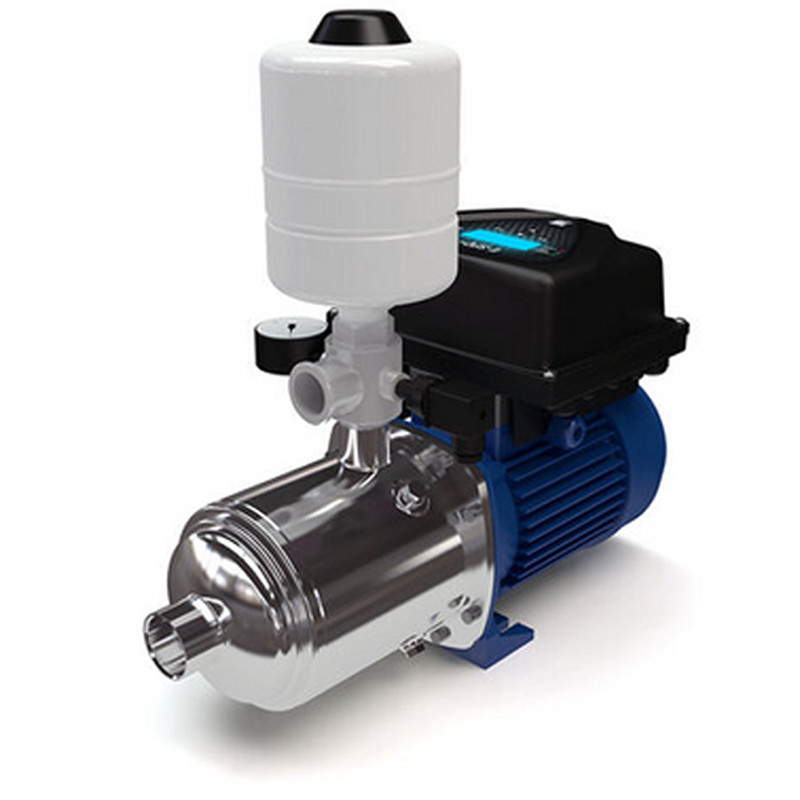

EBARA 1GPE MATRIX 5-5T/1.3 ESPM Single Pump Booster Set

EBARA 1GPE MATRIX 5-5T/1.3 ESPM Single Pump Booster Set

EBARA 1GPE MATRIX is a variable speed single pump booster set designed to increase water pressure and transfer. It employs cutting-edge technology to deliver water at the appropriate pressure and flow for residential and commercial applications. Suitable for clean, abrasive-free liquids. Water supply pump for domestic, civil, and garden use, as well as irrigation. As standard, the unit includes a multi-stage stainless steel electric pump in AISI 304 stainless steel including the E-SPD+ variable speed electronic inverter, 1 AISI 304 stainless steel five-way connector (on the delivery side), 1 analogue pressure gauge, 1 pressure transducer (4-20mA), and an 8 litre expansion vessel. Inlet and Outlet connections are 1" BSP(F)

Features

• Variable speed control allowing smooth pressure control and a low noise performance
• Constant Pressure
• Compact Design
• WRAS Approved for use on drinking water applications
• Prefabricated and ready to install

Technical Data

• Power Supply: 230V/1Ph
• Kw Rating: 1.09Kw
• IP Rating: IP55
• Suction Conneciton: G1 1/4" F PN10
• Discharge Connection: G1" F PN10
• Max Working Pressure: 10 Bar
• Max Flow: 7.8m3/h
