Dutypoint MicroBOOST Tank - Domestic Packaged Water Booster Pump & Tank

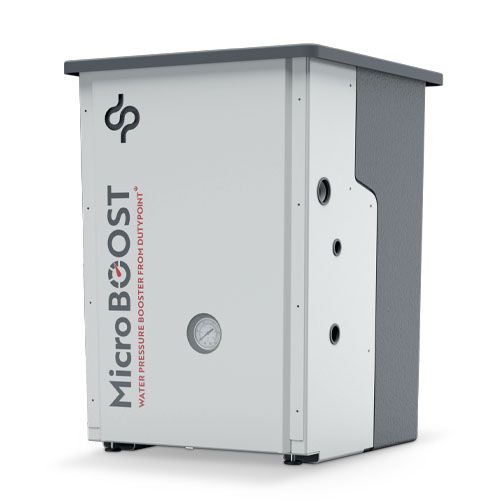

Dutypoint MicroBOOST Tank - A Domestic Packaged Water Booster Pump & Tank

Dutypoint's Compact Domestic Cold Water Booster Pump is now available with a cold water storage tank, conveniently packaged for straight forward installation. This all-in-one home booster pump and storage tank solution fits within the space of a standard 600mm wide kitchen base cabinet, just like a washing machine or dishwasher.

Powered by a powerful IE5 permanent magnet motor, the MicroBOOST Tank offers exceptional energy efficiency while delivering maximum performance. You can also enjoy the benefits of efficiency, convenience, reliability, and peace of mind with the MicroBOOST Tank, which offers full remote access through the App Bridge function.

Key Features:

• Experience maximum performance in a minimal footprint with the MicroBOOST Tank's space-saving design.
• The ultra-high flow tank inlet ensures a consistent water supply, even under low mains pressure conditions.
• The insulated GRP tank provides superior durability and protection against temperature fluctuations.
• The SmartTANK (patent pending) intelligent electronic tank level control system guarantees a continuous water supply, even during temporary drops in mains pressure.
• The MicroBOOST Tank is capable of supplying large residential properties with up to 6 bathrooms across 4 floors.
• Fits conveniently within the space of a standard 600mm wide kitchen base cabinet.
• Pending Water Regulation approval for added assurance.

Specification:

• Full load current: 7 amps
• Noise level*: 49 dB
• Max. system pressure: 10 bar
• Max. pump head: 6.5 bar
• Max. flow: 115 l/min
• Tank capacity: 85 L
• Tank air gap: Type AF, Category 4
• Tank make-up flow:
  • 1 bar mains - 110 l/min
  • 0.5 bar mains - 75 l/min
• Pump set: MicroBOOST MAX
• Pump casing & impeller material: Stainless Steel
• Inlet connection: 22 mm compression
• Outlet connection: 28 mm compression
• Overflow: 40mm push fit
• IP rating: IP55

*At typical domestic duty.
