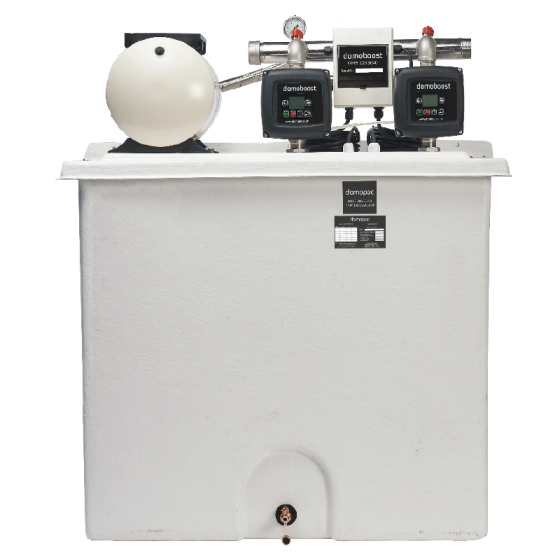

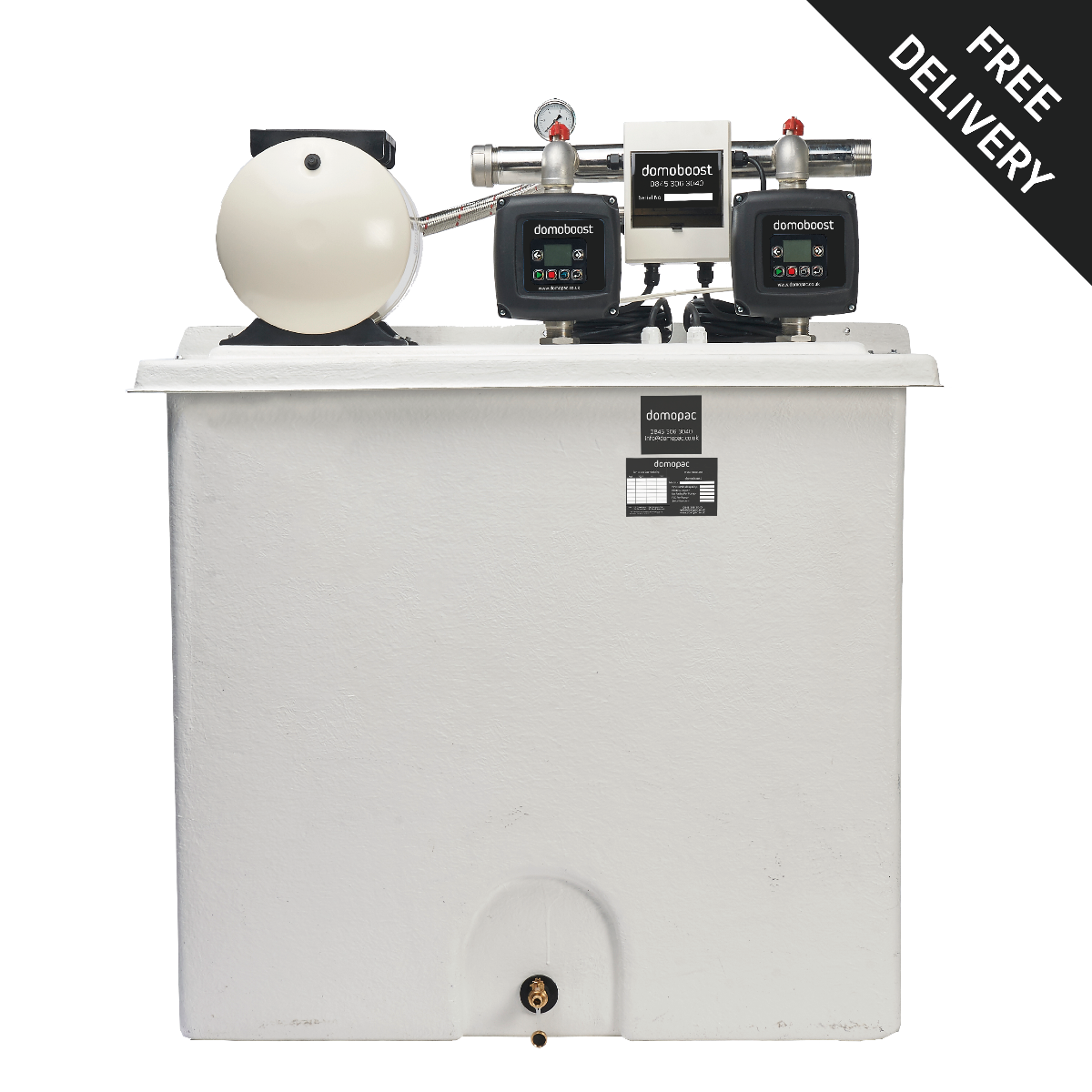

Domoboost Ultra Mini 5 Twin Pump - 600 Litre (Nominal) Water Tank - Domoboost Ultra Packaged Booster Set Range, offering space saving solutions for boosting water in large domestic and commercial premises. Standard tank sizes from 600 litres designed to fit through a standard doorway, to 2000 litres, these are available in AG, AA and AB (CAT 5) airgap configurations.
Range Description
- 1 or 2 pump options (3 pump available on request)
- Suitable for a 1 phase 230 volt supply only
- Noise output <45 dBA
- 600 - 2000 litre standard tank sizes (Other tank sizes available on request)
- AG Air Gap (AB Air Gap/CAT 5 Fluid Category Protection is Available on request)
- WRAS Approved water storage tank manufactured from GRP with 25mm insulation

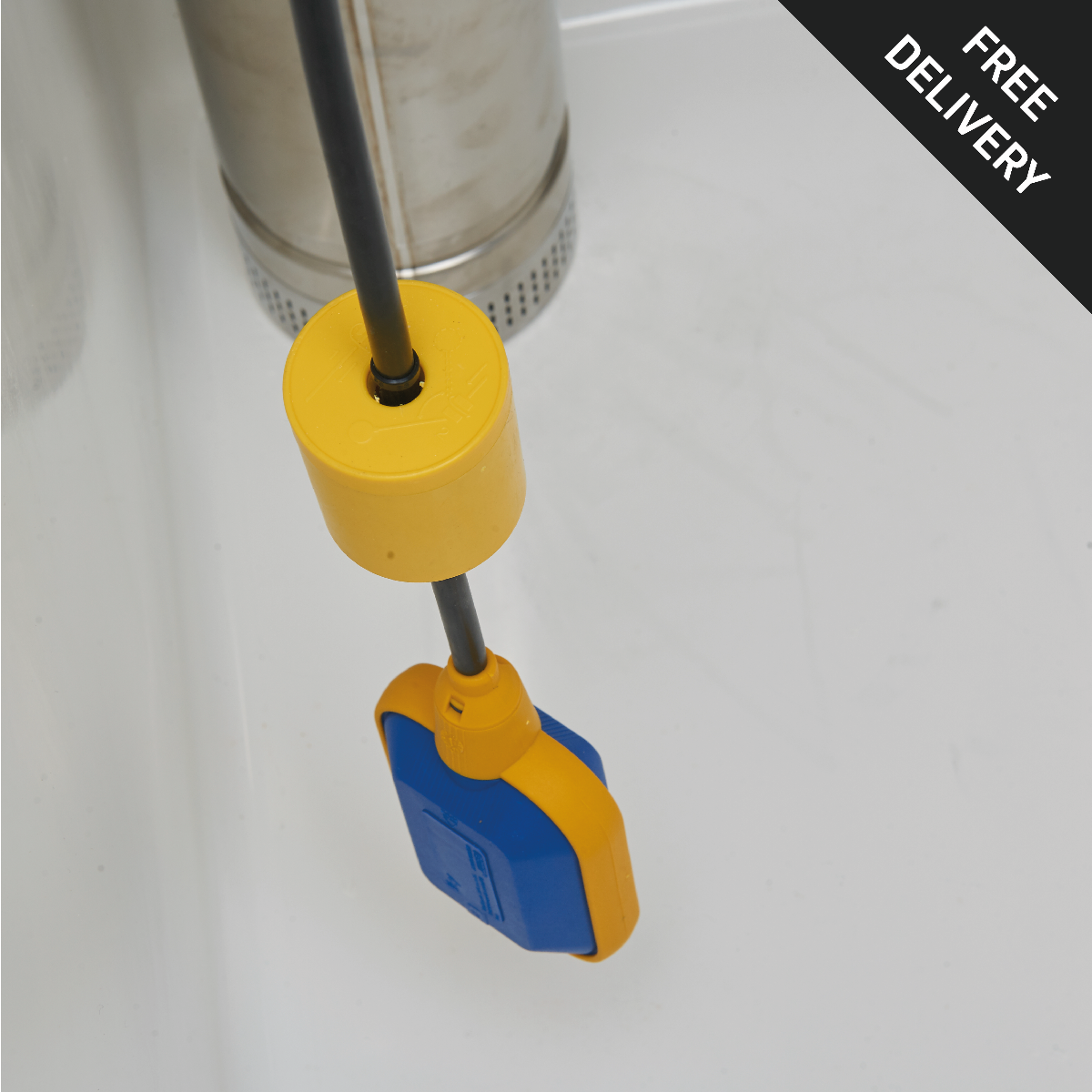

- Low Water Level Protection
- Complete with Volt free contacts
- Domopac ACV.H Expansion Vessel with 5 Year Guarantee
- GRP Tanks available in two and three piece options

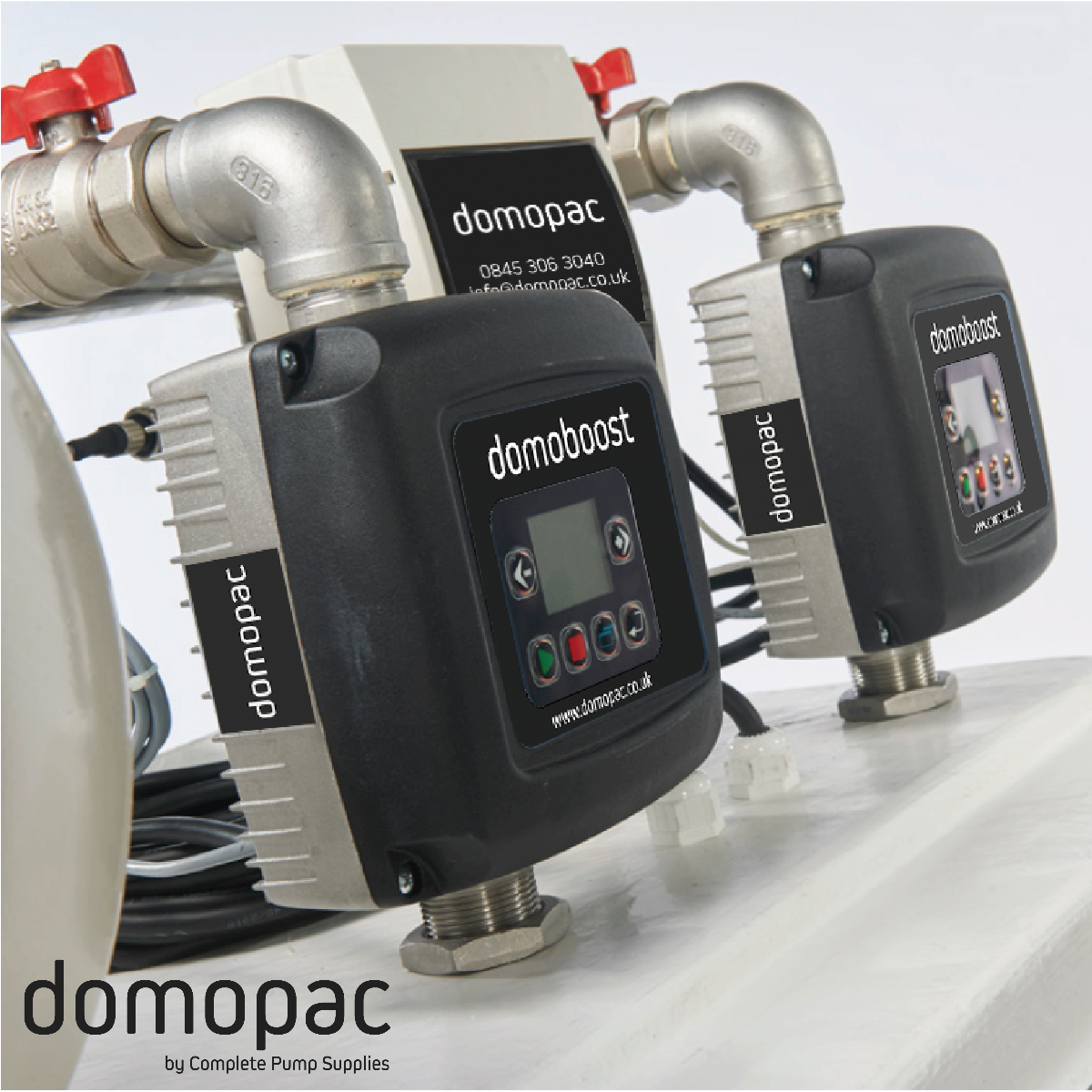

Controller
The Domoboost Ultra Booster Set comes complete with variable speed drive(s) controls with digital system display, these are mounted on the top of the tank, this allows for easy maintenance. The Domoboost Ultra display gives a simple and clear system overview, this includes pressure, speed, frequency and power absorbed. The Domoboost Ultra controller also offers automatic changeover of duty pump, volt free contacts, BMS remote alarm connections and provision for wiring of low level float switch as standard.
GRP Cold Water Storage Tank
The Domoboost Ultra GRP cold water storage tank is insulated to keep the noise level to a minimum. Low maintenance and long lasting our GRP one piece cold water storage tanks are specifically designed and tested to ensure that they meet the requirements set by BS EN 13280:2001. They also have full WRAS approval giving you complete peace of mind. These are available in AG, AA and AB (CAT 5) airgap configurations.
- Fully encapsulated insulation to sides and lid.
- A close fittting and sealed lid which removes for maintenance.
- CFC free PU foam insulation, which is completely enscapsulated within the GRP laminate.
Standard Features
- GRP insulated water storage tank (WRAS Approved)
- 600L - 2000L (other sizes are available upon request)
- Low water level pump protection (as standard)
- Common alarm volt free contactors
- 2 Year Guarantee when commissioned
Model Range - Capacities
| Model | Nominal Capacity (Litres) |
Overall Dimensions L x W xH (mm) |
| Domoboost Ultra Mini | 600 | 1180 x 680 x 1630 |
| Domoboost Ultra Midi | 1000 | 1665 x 665 x 1843 |
| Domoboost Ultra Max | 1500 | 1183 x 1183 x 1985 |
| Domoboost Ultra Elite | 2000 | 2195 x 1195 x 1485 |
*Please note, images shown are for example only.
| Delivery Estimate | 15 - 20 working days |
|---|---|
| Product Type | Booster Set |
| Booster Type | Twin Pump |
| Custom Shipping | 0.000000 |
| Manufacturer | Domopac |
| Model Range | Domoboost Ultra |
| Warranty | 2 Year Warranty |
| Dimensions | 1180 x 680 x 1630mm (L x W x H) |
| Power Supply | 220V-240V Single Phase |
| Kw Rating | 1.5 kW Per Pump |
| Noise Rating | 45 dBA |
| Volume / Capacity | 600 Litre |
| Max Flow | 2.2 l/s |
| Max Head | 78.5m |
| Product Code | 2037303-FB |
| Tank Insulation | 25mm insulation |
| Outlet Connection | 1 1/2" Threaded |
| Positioning | Floor standing |
| System Type | Potable (Drinking) |
| Variable Speed | Yes |
| Pump Quantity | 2 Pump |
