Domoboost Protex Lite SS60 CAT 5 Booster Set with BMS
Domoboost Protex Lite SS60 CAT 5 Booster Set with BMS
Special Price
£1,794.00
£1,495.00
Regular Price
£2,718.00
£2,265.00

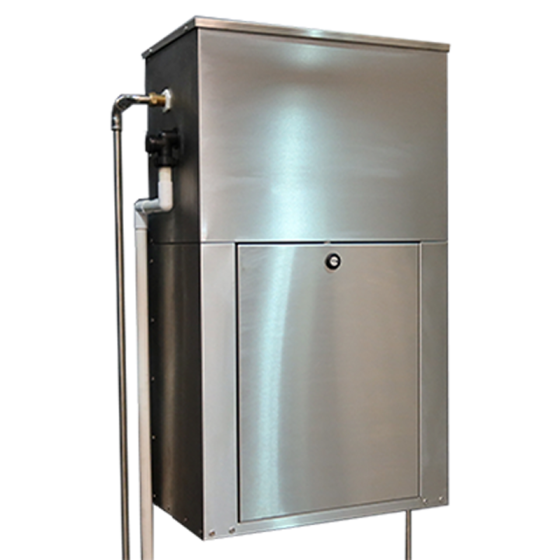

Domoboost Protex Lite SS60 CAT 5 Booster Set with BMS
The Domoboost Protex Lite SS (Stainless Steel) CAT 5 Packaged Booster Set is a compact wall mounted unit that is supplied with a WRAS Approved integral 18 Litre water storage tank. Fitted with a single brass pump and digital controller. Digital controller with BMS contacts fitted as standard. Suitable for a single outlet.
Stainless Steel Cabinet
Single Brass Ended Pump
WRAS Approved Water Tank
WRAS Approved Ball Valve
WRAS Approved Pressure Reducing Valve
Pre Wired and Tested
BMS Contacts
Optional Extras
Easy Fix Wall Mounting Bracket
Drip tray with combined wall mounting bracket
GRP Wall Mounted Cover c/w Brackets
Frost protection heater
Product Dimensions
Height: 850mm
Width: 480mm
Depth: 277mm
Inlet: 1/2"
Outlet: 1/2"
Overflow: 21.5mm Solvent
GRP Wall Cover Dimensions
Height: 1119mm
Width: 766mm
Depth: 431mm
More Information
Product Type
Booster Set
Booster Type
Cat 5
Manufacturer
Domopac
Model Range
Domoboost Protex
Warranty
2 Year Warranty
Dimensions
480mm x 277mm x 850mm (W x D x H)
Power Supply
220V-240V Single Phase
Kw Rating
0.9 kW
Volume / Capacity
18 Litre
Product Code
2037317-FB
Material
Stainless Steel Cabinet
Outlet Connection
1/2" Threaded
Inlet Connection
1/2" Threaded
Connection Type
1/2"
Positioning
Wall mounted
Orientation
Horizontal
System Type
Category 5
